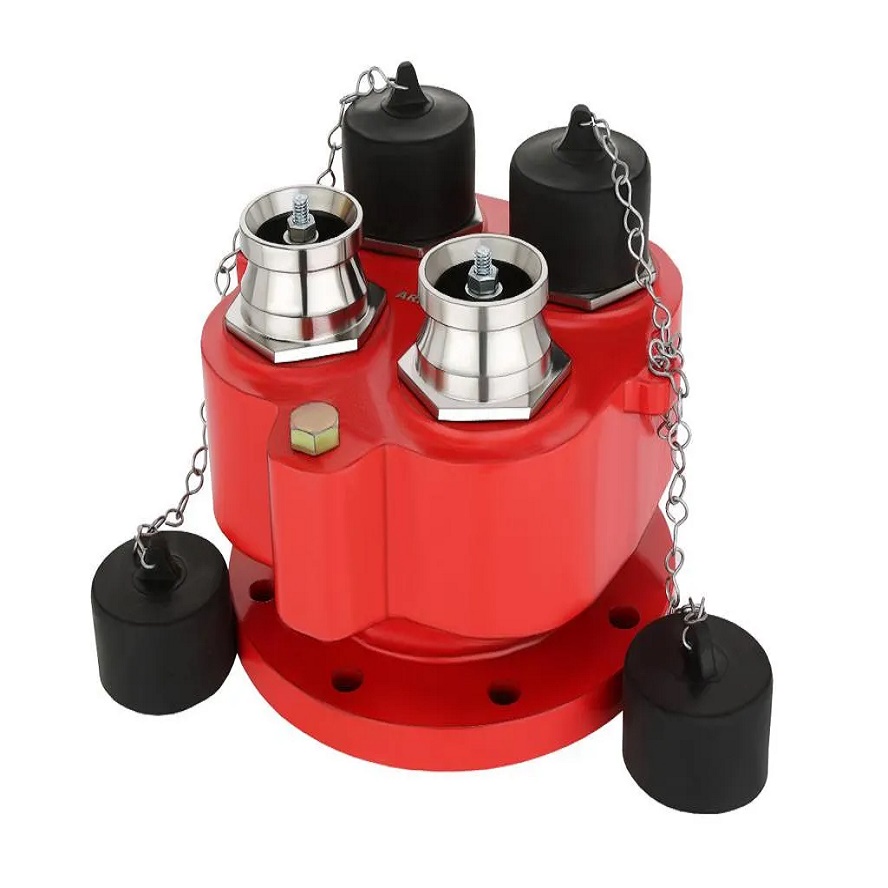

ArmorFire 4 Way Breaching Inlet Stainless Steel NRV
₹ 9,178.04 GST included
4 Nos. of 63mm Stainless Steel Metal Instantaneous Inlets. 150mm Flaged Outlet. Cast Iron Body. Suitable for Connection to Dry Riser Piping.
In stock
Description
ArmorFire 4 Way Breaching Inlet Stainless Steel NRV allows Fire Tenders to Pump in Water into the Dry Riser/ Wet Riser/ Sprinkler System piping using External Water sources such as Hydrants. This Inlet is fitted with Required number of Standard Male instantaneous Inlets to feed the Riser Pipe Depending Upon Size. Having Cast Iron Body with 2 Nos. 63mm size Stainless Steel Instantaneous Inlets (With NRV), and 150mm size Flanged Outlet, Suitable for Connection to Dry Riser Piping. Fire Brigade Inlet Body shall be provided with Drain Valve for Draining Water after Operation.
Features
- 4 Nos. of 63mm Stainless Steel Metal Instantaneous Inlets
- 150mm Flaged Outlet
- Cast Iron Body
- Suitable for Connection to Dry Riser Piping
Specifications
- Brand : ArmorFire
- Model : 4-way FB Inlet
- Inlet : 4 Nos. Male Instantaneous Adaptor (63mm) with NRV
- Outlet : 150mm NB flanged (IS:1538)
- Material of Construction : Cast Iron Body with SS Adaptors
- Inlet Caps/ Seat Washer : Rubber, IS: 937 Type A
- Working Pressure : 7 Kgf/Cm2
- Weight (Approx) : 24.0Kg
