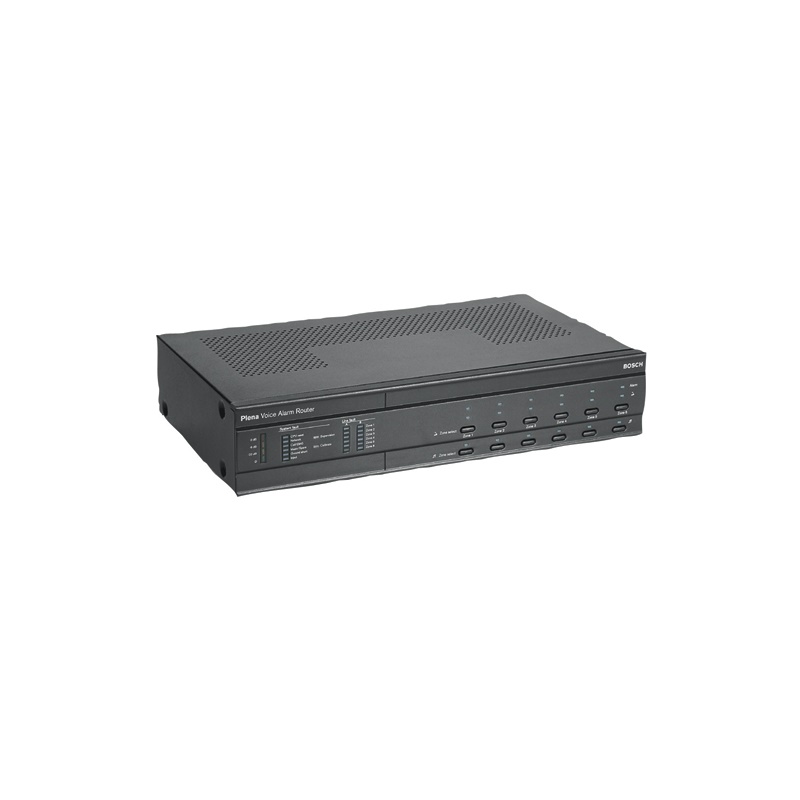

Bosch LBB1992/00 Router

Name: Bosch LBB1992/00 Router
SKU: FSIN00002256
Price: 129800.00 INR
Availability: InStock

See all products from bosch

₹ 129,800.00 GST included

Expand the Plena Voice Alarm System with six zones. EN 54-16 certified. 12 additional input contacts. Six volume override output contacts.
Supervision within the Plena Voice Alarm System.

In stock

Compare

Product Code : FSIN00002256 Brand: BOSCH Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Bosch Router is an expansion unit that can add six zones and 12 input contacts to the Plena Voice Alarm System. It can use the built-in amplifier on the LBB1990/00 Plena Voice Alarm System Controller, and provides inputs and outputs for one or two amplifiers in a multi-amplifier one or two-channel system. It provides dual channel operation for calls and BGM simultaneously to a maximum of six different zones, using two amplifiers. Additionally, single channel operation is possible with only one amplifier. Multiple routers can also share one amplifier, including the internal amplifier on the controller unit. It is possible to use any number of amplifiers from one up to the number of routers used. The controller supports A/B wiring.

Features

Expand the Plena Voice Alarm System with six zones
EN 54-16 certified
12 additional input contacts
Six volume override output contacts
Supervision within the Plena Voice Alarm System

Specifications

Brand : Bosch Paco
Electrical : Mains power supply - Voltage : 230/115VAC, Plus or Minus 15 Percent, 50/60 Hz
Inrush current : 1.5 A at 230 VAC / 3 A at 115 VAC
Max power consumption : 50 VA
Dimensions (H x W x D) : 88 x 430 x 260 mm(19 inch wide, 2U high)
Weight : Approx. 3 kg
Mounting : Standalone, 19 inch rack
Color : Charcoal
