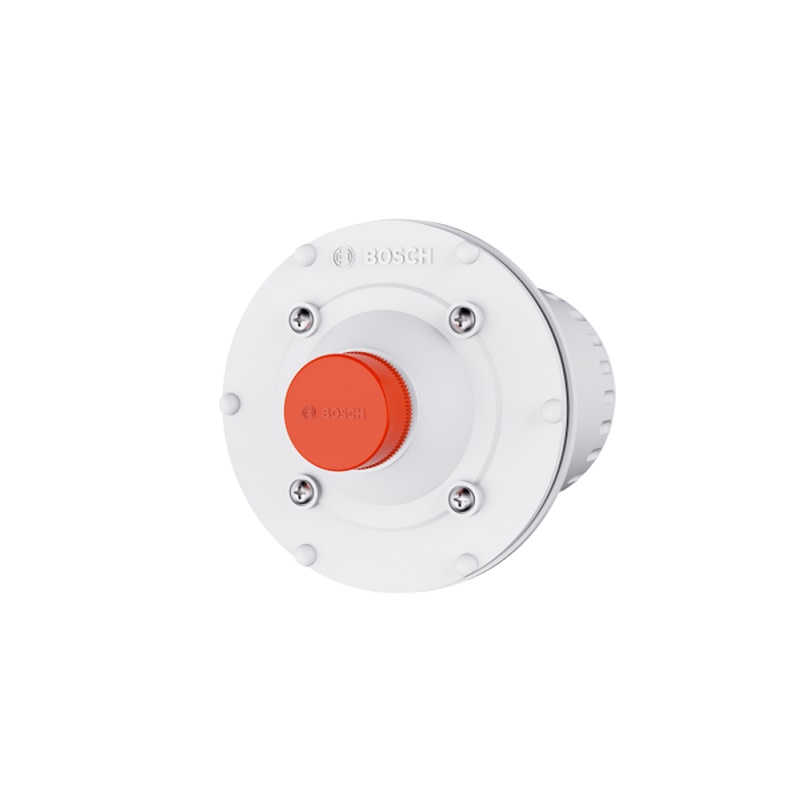

Bosch LHD-UM60X-IN Horn loudspeaker driver with LMT, 60W
₹ 3,186.00 GST included
60 W driver unit with line matching transformer. Excellent speech reproduction. Water- and dust-protected according to IP65. Simple power tapping through color-coded cables. Anodized fasteners employed for product longevity.
In stock
Product Code : FSIN00002302
Brand: BOSCH
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Bosch Horn loudspeaker driver with LMT, 60W is a 60 W line-matching transformer to be used with a horn loudspeaker driver unit suitable for 100 V public address applications. This driver unit can be installed along with 22-inch and 18-inch horn waveguides (supplied separately). 1-3/8 inch, 18 threads per inch screw thread is used for mounting the driver into the horns. The horn loudspeakers are ideal for outdoor applications, such as: Addressing election rallies. Cultural and religious gathering. Places of worship. Schools and colleges. Car parking areas. Sport venues and playgrounds. Tradeshows and exhibitions. Industrial complexes. Parts included – LHD-UM60X-IN Horn loudspeaker driver with LMT, 60W – 10 Qty., Quick installation guide – 10 Qty.
Features
- 60 W driver unit with line matching transformer
- Excellent speech reproduction
- Water- and dust-protected according to IP65
- Simple power tapping through color-coded cables
- Anodized fasteners employed for product longevity.
Specifications
- Brand : Bosch Paco
- Electrical : Maximum power (W) : 90 W
- Input voltage (V) : 70 V / 100 V
- Power tapping (W) : 60 W / 30 W / 15 W
- Dimensions (mm) : 160 mm x 126 mm
- Weight (kg) (individual driver unit) : 2.34 kg
- Color (RAL) : RAL 7035 Light gray
