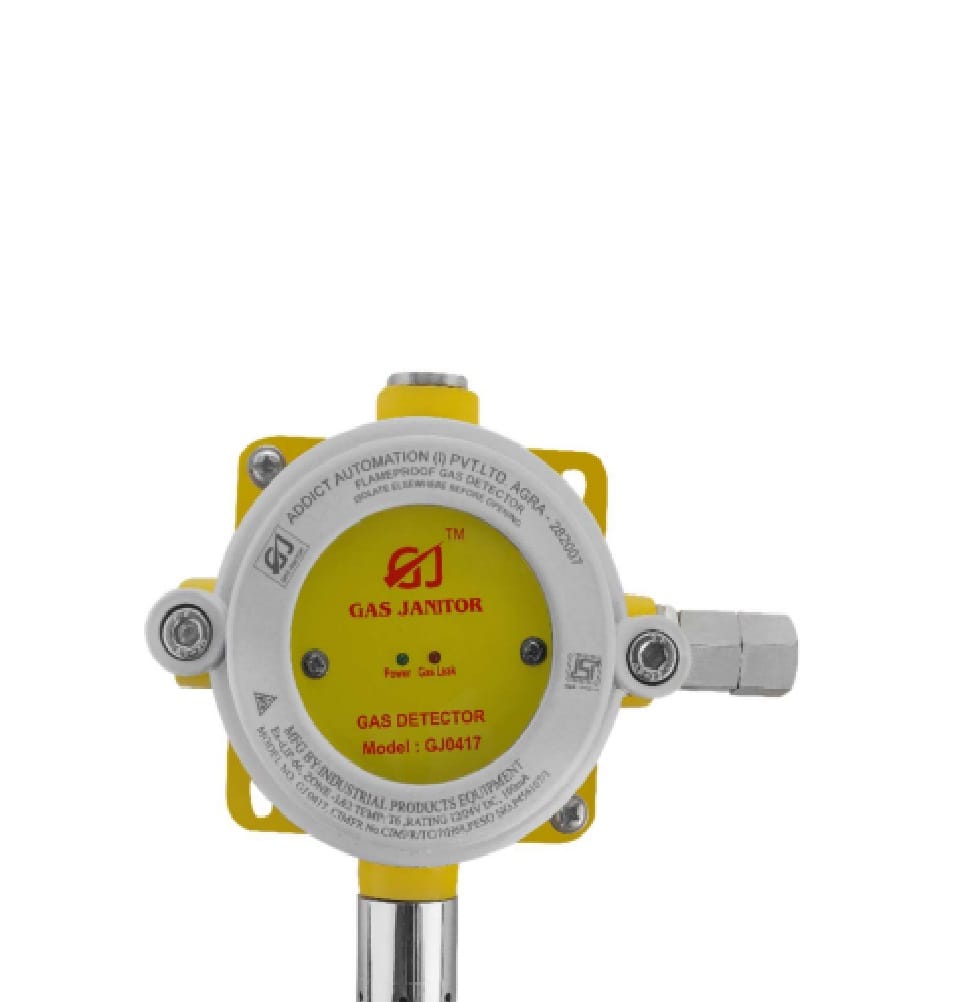

Gas Janitor GJ0417 LPG/PNG LEAKAGE DETECTOR
₹ 11,800.00 GST included
The GJ0417 is a wall mounted or fixed type LPG/PNG leakage detector. This device
senses the LPG/PNG gas leakage and gives LED indication and send signal to control
panel also.
Description
The GJ0417 is a wall mounted or fixed type LPG/PNG leakage detector. This device
senses the LPG/PNG gas leakage and gives LED indication and send signal to control
panel also. Detectors and control panel connected with four core cables. And it is
installed near gas leakage points. This device is also compatible to operate solenoid
valve, Hooter, Siren, Fire Panel and BMS with some customization.
Features
- Widely installed in many industries
- Four wire communication two for power and remains two for Output.
- Protection against wrong wire connection and over range.
- MCU Based
- Fast Response
- Simple installation and maintenance
- Weatherproof & Flamepoof enclosure
Specifications
- Detection Principle : Semiconductor
- Sampling : Diffusion
- Range : 0 to 25% or 0 to 100% LE
- Power Supply : 24 VDC
- Power (MAX) : 100 mA @ 24VDC
- Environmental Tempreature : 0 to 55°C
- Environmental Humidity : 95% (Non-Condensing)
- Output : SPDT
- Alarm Level : 10% LEL
- Response Time : <10 Sec
- Enclosure Class : IP66
- Mechanical Interface : 3/4″ NPT Three Side
- Total Diamentions : (L)180mm*(W)180mm*(H)100mm
- Color : TOP GRAY & BOTTOM YELLOW
- Housing Material : Aluminium Alloy
- Certificate : CMRI, BIS,PESO(CCOE)
