GST Digital Zone Monitor Module, DI-9319E
₹ 4,720.00 GST included
Cable checking for Inputs and Outputs. Normally-open (NO) or Normally-close (NC) output Automatically follows Input Port to Change State. Electronically addressing. Addresses can be Modified in field. DIN-Rail Mounted or Wall mounted. Standard: EN 54-18:2005.
In stock
Description

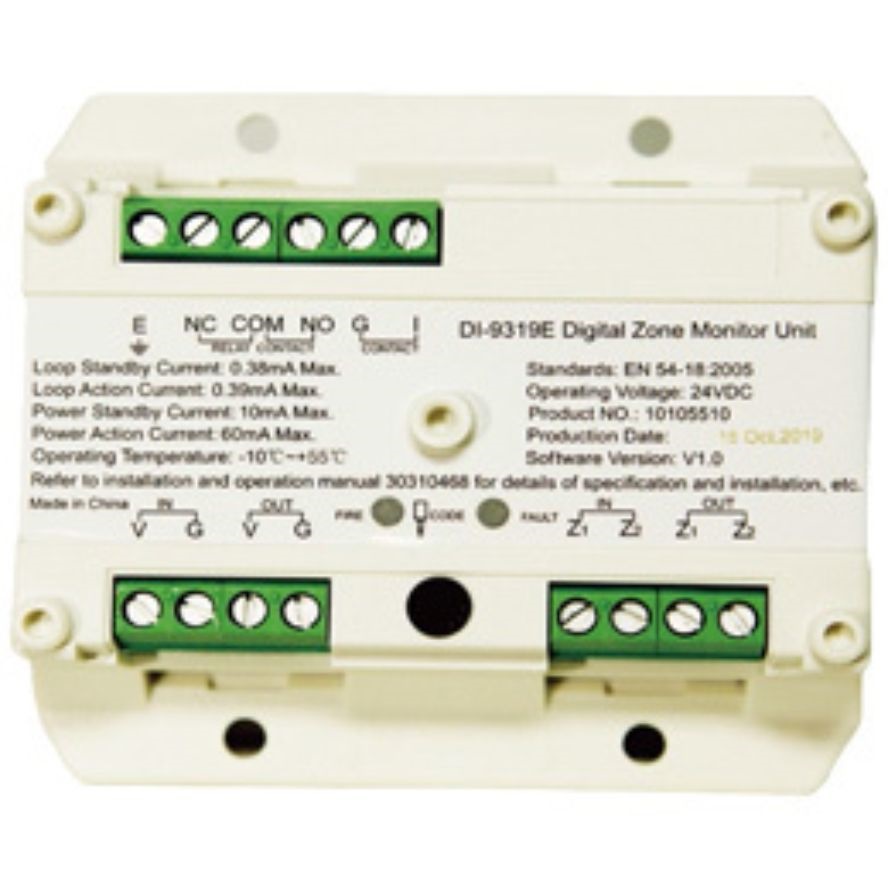

GST Digital Zone Monitor Module, DI-9319E is Designed to Connect with Conventional Detectors, Occupying one Address. When any Device in the Loop Reports Alarm Signal, the Unit will Transmit the signal to the FACP which Generates Fire Alarm and Displays the Address of the Unit.
Features
- Cable checking for Inputs and Outputs
- Normally-open (NO) or Normally-close (NC) output Automatically follows Input Port to Change State
- Electronically addressing
- Addresses can be Modified in field
- DIN-Rail Mounted or Wall mounted
- Standard: EN 54-18:2005
Specifications
- Brand : GST
- Operating Voltage : Loop-24VDC (16VDC~28VDC), Power-24VDC (20VDC~28VDC)
- Standby Current : Loop less or equal to 0.38mA, Power less or equal to 10mA
- Action Current : Loop-Less or equal to 0.39mA, Power-less or equal to 60mA
- Output Capacity : 2A at 30VDC
- Relay Output : NO or NC
- Input Capacity : Up to 30 conventional detectors
- Programming Method : Electronically addressed, Code range is within 1-242
- Dimension (L×W×H) : 85.3mm×78mm×33mm
