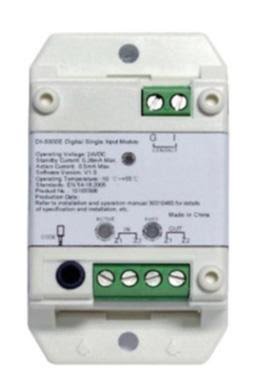

GSTDI-9301E Digital Single Input and Output Module

Name: GSTDI-9301E Digital Single Input and Output Module
SKU: FSIN00001364
Price: 3658.00 INR
Availability: InStock

See all products from gst

₹ 3,658.00 GST included

The dry contact input port can be programmed to NC or NO and monitored. The input can also be programmed as self-answering, which means that the Input port monitoring is disabled, and the module will directly send a status signal to FACP when the dry-contact output changes state. Addressable unit. Address can be programmed in field. Input port utilizes AD sampling technology for precise testing. DIN-Rail mounted or Wall mounted. Standard: EN 54-18:2005

Compare

Product Code : FSIN00001364 Brand: GST Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

With a microprocessor, the DI-9301E Digital Single Input and Output Module (the module) can communicate with fire alarm control panel (FACP), check loop power-cut, control output, circuit faults, logic state of input signals, and state LEDs. On receiving start command from the FACP, it will close the output relay and illuminate the active indicator. The dry contact input port can be programmed to NC or NO and monitored. The input can also be programmed as self-answering, which means that the Input port monitoring is disabled, and the module will directly send a status signal to FACP when the dry-contact output changes state. Addressable unit. Address can be programmed in field. Input port utilizes AD sampling technology for precise testing. DIN-Rail mounted or Wall mounted. Standard: EN 54-18:2005

Features

The dry contact input port can be programmed to NC or NO and monitored.
The input can also be programmed as self-answering, which means that the Input port monitoring is disabled, and the module will directly send a status signal to FACP when the dry-contact output changes state.
Addressable unit. Address can be programmed in field.
Input port utilizes AD sampling technology for precise testing
DIN-Rail mounted or Wall mounted.
Standard: EN 54-18:2005

Specifications

Operating Voltage : Loop 24VDC(16VDC - 28VDC)
Standby Current : ? 0.26mA
Action Current : ? 0.7mA
Relay Output : NO or NC
Output Capacity: 2A@30VDC. Contact resistance is 30k? in normal. It closes after starting
Programming : Electronically addressing
Address Range : Two options preset by manufacturer: Option 1: Both Input and Output occupy one address that ranges from 1 to 242. Option 2: Occupy two addresses representing Input and Out put. Input address range is 1 to 241. Output address is automatically programmed as input address plus 1.
LED : Input LED: Red. It lights in receiving feedbacks, lights 0.5s on, 0.5s off in input faults, and flashes in other states. Output LED: Red. It lights in relay action, 0.5s on and 0.5s off as there is output fault. It turns off in other states.
Ingress Protection Rating : IP30
Operating Temperature : -10°C - +55°C
Relative Humidity : ? 95%, non-condensing
Compatible DIN-Rail : 35mm DIN-Rails
Materials of the Enclosure : ABS, white (RAL9016)
Dimension(L×W×H) : 85.3mm×78mm×33mm
Weight : About 66.5g
