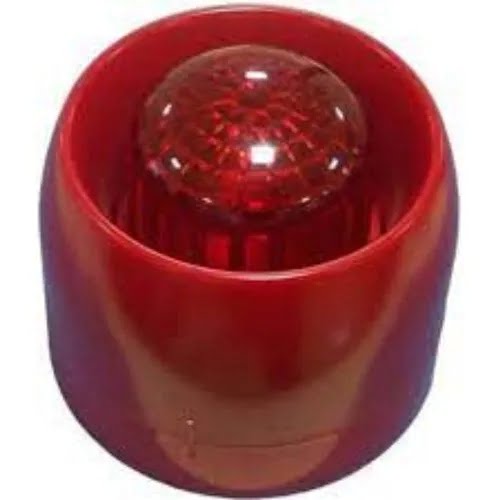

GSTI-9403 Intelligent Sounder Strobe

Name: GSTI-9403 Intelligent Sounder Strobe
SKU: FSIN00001367
Price: 4366.00 INR
Availability: InStock

See all products from gst

₹ 4,366.00 GST included

Providing 16 tones. Using ultra bright LEDs as source for light indication. Optional transparent colorless lens (C-94WL) available. Loop powered or external 24V powered. Power-saving consumption mode and normal consumption mode (factory default). Single/dual address programmable. Working modes: sounder & strobe/strobe only/sounder only. Standard: EN 54-3.

Compare

Product Code : FSIN00001367 Brand: GST Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

I-9403 Intelligent Sounder Strobe is an audible and visual alarm device installed in field, which can be activated by fire alarm control panel in fire control center. After activated, it will generate strong audible and visual alarm signal to warn people in field. A 25.5mm high shallow base and a 40mm high deep base are available. The sounder strobe comes with the shallow base. The deep base C-94DB should be ordered separately. Unless otherwise stated, all descriptions in this manual take the shallow base as example. Providing 16 tones. Using ultra bright LEDs as source for light indication. Optional transparent colorless lens (C-94WL) available. Loop powered or external 24V powered. Power-saving consumption mode and normal
consumption mode (factory default). Single/dual address programmable. Working modes: sounder & strobe / strobe only /
sounder only. Standard: EN 54-3.

Features

Providing 16 tones
Using ultra bright LEDs as source for light indication. Optional transparent colorless lens (C-94WL) available.
Loop powered or external 24V powered.
Power-saving consumption mode and normal consumption mode (factory default).
Single/dual address programmable.
Working modes: sounder & strobe / strobe only / sounder only.
Standard: EN 54-3.

Specifications

Operating Voltage : Loop: 24V (20V~28V) Power: 24V (20V~28V)
Standby Current : Power-saving mode: Loop-powered: Loop monitor current?2mA Start current?9mA External 24V powered Loop monitor current?1mA Start current?2mA Power monitor current?1mA Start current?9mA Note: The sounder strobe can only work at power-saving mode when loop-powered with maximum 20 sounder strobas in the loop. Normal Mode : Loop powered Loop monitor current?2mA Start current?35mA External 24V powered Loop monitor current?1mA Start current?2mA Power monitor current?1mA Start current?35mA
Flash Frequency : tart current?35mA Flash Frequency ? Single address: 1.4×(1±20%) Hz Dual addresses: First address activated: 0.7×(1±20%) Hz Second address activated: 1.4×(1±20%) Hz
Programming Method : Single / dual address (refer to Table 1)
Programming Range : 1~242
Ingress Protection Rating : IP33
Operating Temperature : -10??+50?
Relative Humanity : ?95%, non condensing
Enclosure Material : ABS
Dimension (D×H) : ?110mm×110.4mm (deep base) ?110mm×95.9mm (shallow base)
Mounting Hole Spacing : 5mm?80mm
Weight : About 355g (deep base) About 327.2g (shallow base)
