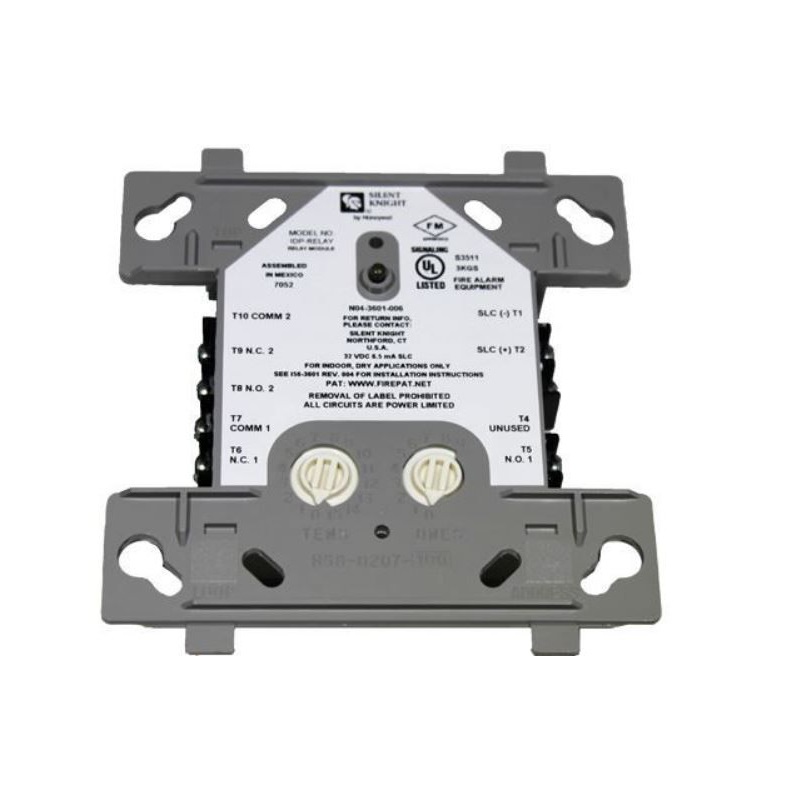

Honeywell IDP-RELAY Addressable Relay Module

Name: Honeywell IDP-RELAY Addressable Relay Module
SKU: FSIN00002499
Price: 2460.30 INR
Availability: InStock

See all products from system-sensor

₹ 2,460.30 GST included

Compare

Product Code : FSIN00002499 Brand: System Sensor Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Honeywell IDP-RELAY is an addressable relay module designed for use with Honeywell fire alarm control panels. It allows system integration by providing a dry-contact relay output, enabling the activation of external devices such as fans, dampers, doors, or auxiliary systems in response to alarm or supervisory conditions.

Features

Form C Relay Contact: Provides both normally open (NO) and normally closed (NC) contacts for flexibility
Multiple Mounting Options: Can be installed in standard electrical boxes for convenient placement
Panel-Controlled Activation: The relay can be programmed to activate based on system events
Addressable Module: Assigns a unique address for easy identification and integration
Low Power Consumption: Efficient operation to minimize system load
LED Indicator: Built-in LED for status indication

Specifications

Operating Voltage: 15–32V DC
Relay Contact Ratings: Resistive Load: 2A at 30V DC / 0.5A at 125V AC ; Inductive Load: 1A at 30V DC / 0.25A at 125V AC
Wiring: Screw terminal connections for easy installation
Dimensions: Compact design for flexible mounting
Compatibility: Works with Honeywell addressable fire alarm control panels
