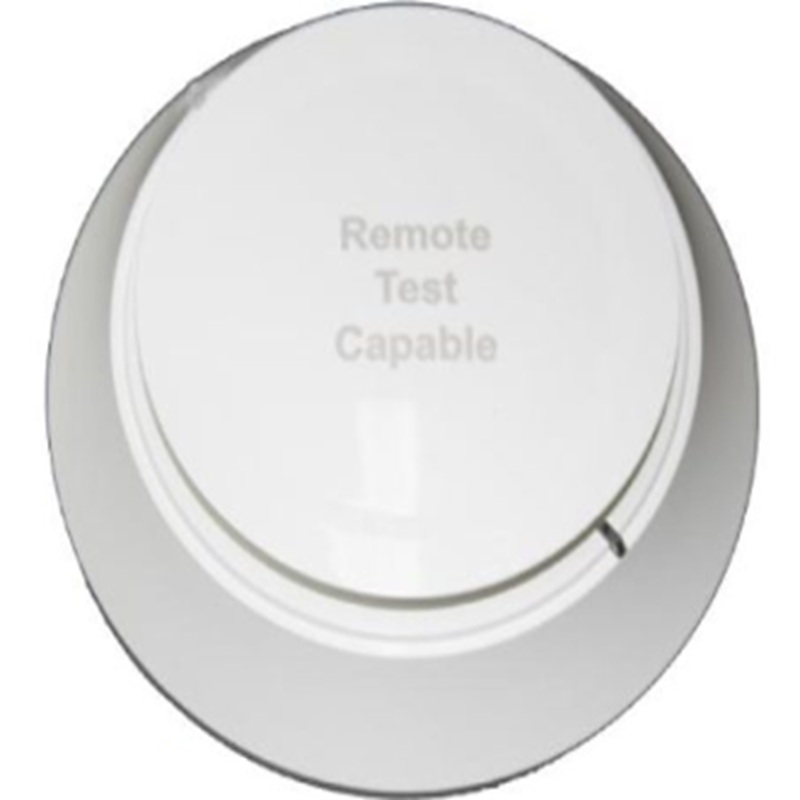

Honeywell – Photoelectric Smoke Detector – Model: IDP-PHOTO-R-W
See all products from honeywell₹ 2,183.00 GST included
The Honeywell IDP-PHOTO-R-W is a highly accurate, addressable photoelectric smoke detector designed to provide early warning of smoldering fires in commercial and industrial environments. Featuring remote test capability, this white, low-profile detector integrates seamlessly with Honeywell’s fire alarm systems using the System Sensor protocol.
Description
The Honeywell IDP-PHOTO-R-W is a highly accurate, addressable photoelectric smoke detector designed to provide early warning of smoldering fires in commercial and industrial environments. Featuring remote test capability, this white, low-profile detector integrates seamlessly with Honeywell’s fire alarm systems using the System Sensor protocol.
Its advanced photoelectric sensing technology ensures quick and reliable smoke detection with reduced false alarms, especially in areas like offices, hotels, schools, and retail spaces. Equipped with 360° LED indicators and plug-in design for fast installation, the IDP-PHOTO-R-W offers intelligent performance with minimal maintenance.
Features
- Intelligent Photoelectric Sensing – Quickly detects slow-burning, smoldering fires
- Remote Test Feature – Enables testing from a control panel or test switch (ideal for high ceilings).
- Addressable Device – Designed for use with Honeywell FACP using the System Sensor protocol.
- Sleek White Finish – Matches contemporary aesthetics; also available in ivory (IDP-PHOTO-R).
- Dual 360° LED Indicators – Clearly visible status from any direction.
- Plug-In Mounting – Reduces installation time and ensures a secure connection.
- Drift Compensation & Maintenance Alert – Automatically adjusts for environmental dust and alerts when cleaning is needed.
Specifications
- Model IDP-PHOTO-R-W
- Manufacturer Honeywell
- Device Type Addressable Photoelectric Smoke Detector
- Operating Voltage Loop powered (15–32 VDC)
- Operating Temperature 32°F to 120°F (0°C to 49°C)
- Mounting Options Standard 4” (10.16 cm) or 6” (15.24 cm) base
- Certifications UL Listed, CSFM, MEA
