Qutak QT - EL 3250 Emergency Exit Light 220V 50HZ
₹ 4,838.00 GST included
Next product
Prolite PEL LED M 600 Portable Non-Maintained Emergency Light
₹ 7,540.20 GST included

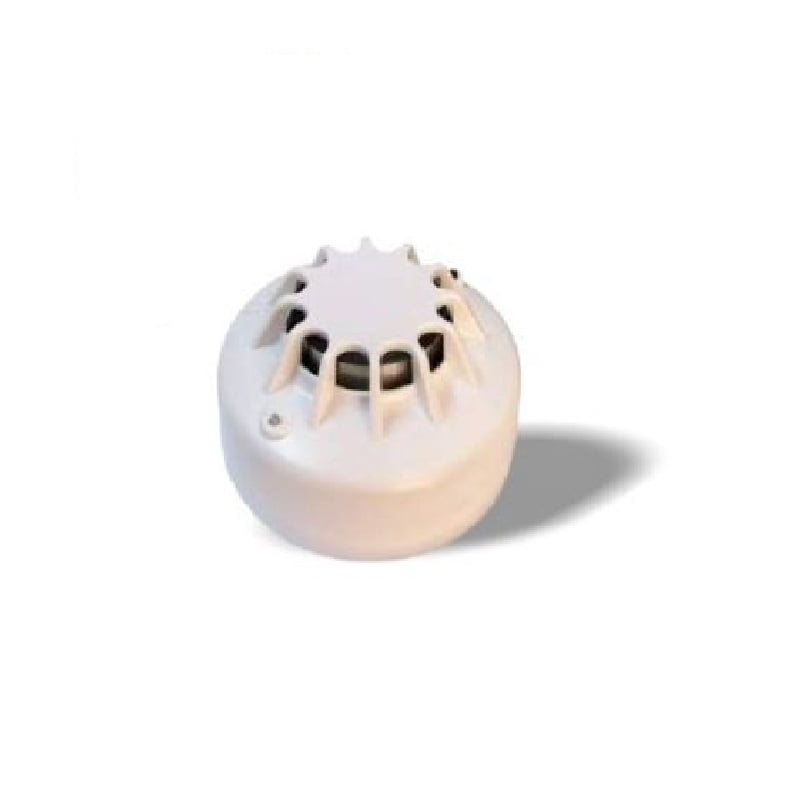

Qutak QT 180-2L Heat Detector Dual LED
See all products from qutak-security-devices₹ 2,360.00 GST included
Heat detectors are vital devices for detecting fires and ensuring safety. As the name suggests, the devices sense the temperature of a room or area in order to detect fires. Heat detectors work on a similar principle used by smoke detectors, by tracking the temperature instead of smoke.
In stock
Product Code : FSIN00000096
Brand: Qutak Security Devices
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Heat Detector Dual LED is a addressable temperature detector rated at class A1, A2 and B (depending on the panel configuration settings). A rate-of-rise algorithm allows the device to raise the alarm before the fixed temperature trigger point is reached, whilst an exclusive 7-segment display provides on the spot information such as alarm notification for fault, pre-alarm, maintenance alarm (CleanMe), disable, test, error (double address, wrong sensor type) and sensor polling. Heat detectors are vital devices for detecting fires and ensuring safety. As the name suggests, the devices sense the temperature of a room or area in order to detect fires. Heat detectors work on a similar principle used by smoke detectors, by tracking the temperature instead of smoke.
Features
- Rate Of Rise cum Fix Temperature type
- Dual LED for 360 degree visibility
- 2 wire based detector
- Advance algorithms provides advanced detection discrimination
- Easy installation
- Low maintenance
- High immunity against unwanted alarms
- Stable heat chamber, No adjustment or replacement required
- Low operational voltage
- Designed for fast, easy installation
Specifications
- Operating Voltage : DC (10.8 ~ 30) V
- Frequency : 3-5 Seconds
- Heat Sensitivity : 135ø F/ROR
- Reset Voltage : Less than 1 volt
- Reset time : Less than 1 sec
- Alarm indication : 2 continuous emitting red LEDs
- Weight : 140 gram with base
- Start up current : 100æA
- Alarm current (Max) : 50 mA
- Stand by current : 45æA
- Dimension : Dia 100mm, ht 46mm
