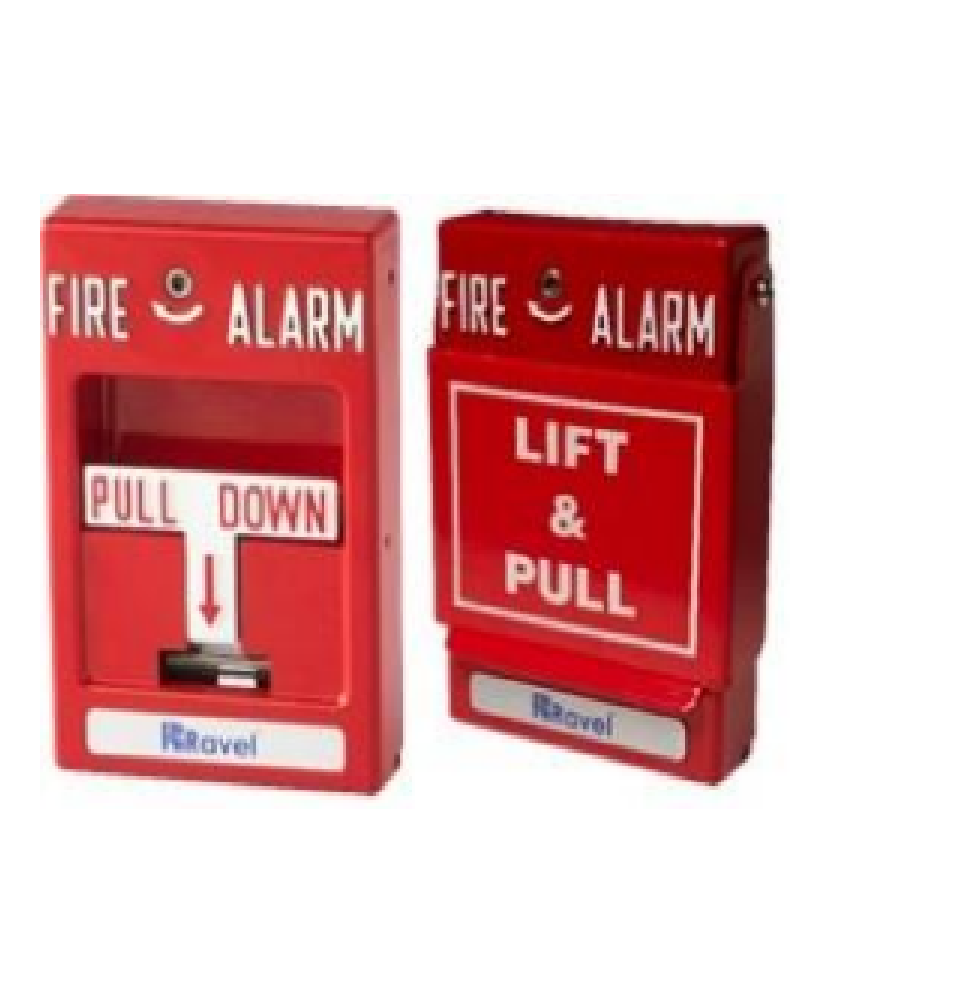

Ravel RE557P Addressable Manual Pull Station
₹ 5,900.00 GST included
Addressable Manual Pull Station is a high quality non-toxic die-cast manual
pull station. Low profile design and smooth edges offer an attractive yet
functional design. All components are pre-painted or have plated surfaces to
inhibit corrosion
Description
Addressable Manual Pull Station is a high quality non-toxic die-cast manual
pull station. Low profile design and smooth edges offer an attractive yet
functional design. All components are pre-painted or have plated surfaces to
inhibit corrosion. The RE-557P Series Manual pull station is unbeatable with
10 Amp snap action switch offered in all possible contact arrangements
(including gold contacts). The RE-557P Series pull station can be used with or
without a break glass rod, with replacement requiring no special tools. And
pull station should be connectedtothecompatiblecontrolpanel. The address
for this device shall be configured by using the 8-way DIP switch and utilise a
single address.
Features
- Complies UL 38 8 th edition.
- DIP Switches for addressing.
- SLC communication with the panel.
- Lift and pull
- Break glass cover.
- All stations offer hex screw or key lock access.
- Low Standby Current.
Specifications
- Brand Ravel
- Switch 10A@120 VAC
- Operating Voltage 17 -32 VDC
- Quiescent Current 0.68 mA
- Alarm Current 2 mA
- Temperature 0 – 49°C
- Relative Humidity 0 - 93% non-condensing
- Connection 2.5mm2 Max (12AWG)
- Dimension 3.2W X 4.75L X 0.87D in
- Weight 15.5 oz / 420 grams
