Swastik Dual plate wafer check Valve Ductile Iron disk PN-10, Sizes: 150mm
₹ 4,327.06 GST included
Next product
Swastik Dual plate wafer check Valve Ductile Iron disk PN-10, Sizes: 250mm
₹ 11,340.98 GST included

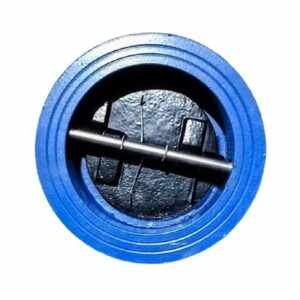

Swastik Dual plate wafer check Valve Ductile Iron disk PN-10, Sizes: 200mm
₹ 6,359.02 GST included
Wide Size range (DN50 to DN900). Cast Iron Body. Lapped Stainless Steel Disc. Wafer type and Flange type Connection.
In stock
Description
Swastik Dual plate wafer check Valve Ductile Iron disk PN-10, Sizes: 200mm is designed for Chilled & Hot Water for purpose. A Non-return valve that is stronger, lighter in weight and smaller in size as compared to other Check Valve.
Features
- Wide Size range (DN50 to DN900)
- Cast Iron Body
- Lapped Stainless Steel Disc
- Wafer type and Flange type Connection
Specifications
- Brand : Swastik
- Size : 200mm
- Nominal pressure : PN16
- Body Material : IS: 210, FG 200
- Shaft Material : ASTM A276,GR SS 410
- Plate Material : Lapped Stainless Steel Disc
- Seal : EPDM
- Medium Type : Water
- Medium Temperature : Minus 10 to Plus 110 Max.
