Swastik Foam Making Branch (FB5X) Aluminium Alloy
₹ 7,998.04 GST included
Lightweight compact self inducing high output Branch Pipe. Longer foam throws Performance. Wide Operating Pressure Range. Suitable for all types of foam concentrate. Useful for Oil and Chemical Installations, General Industries, Airports and Fire Brigades.
In stock
Description

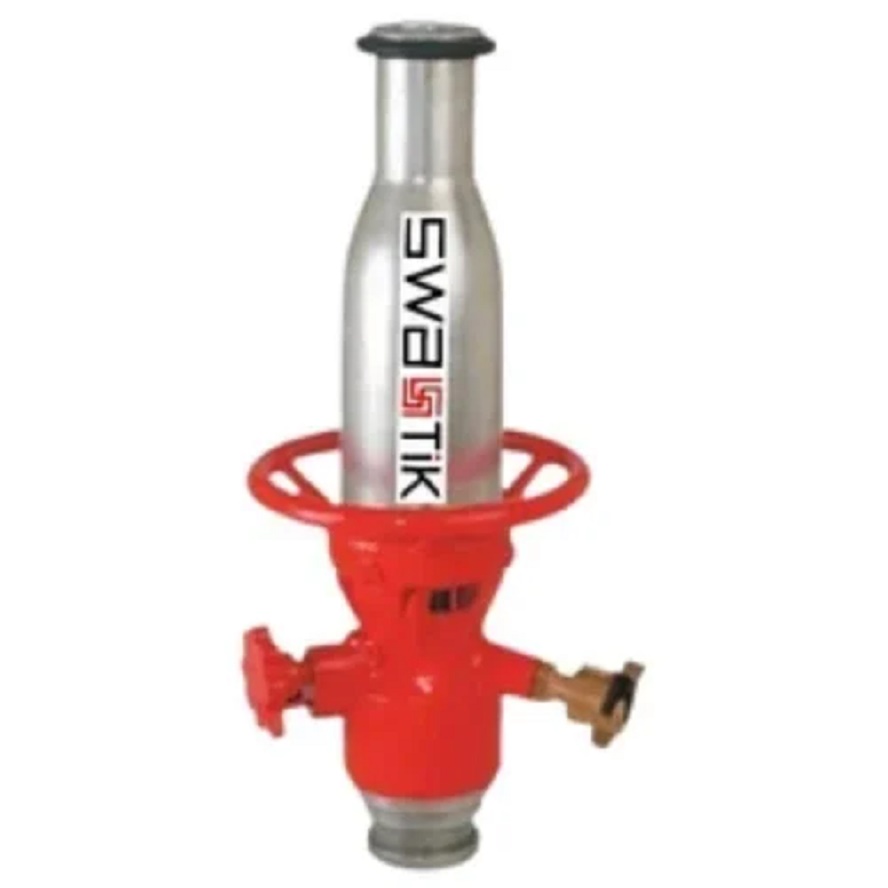

Swastik Foam Making Branch (FB5X) is a lightweight, easy to handle. Ideal for Fire Brigade first line appliances and general industrial use. It will operate from a water supply at particular pressure to produce foam bubbles via 3m long pierce pick-up tube which can be supplied with the Branch Pipe.
Features
- Lightweight compact self inducing high output Branch Pipe
- Longer foam throws Performance
- Wide Operating Pressure Range
- Suitable for all types of foam concentrate
- Useful for Oil and Chemical Installations, General Industries, Airports and Fire Brigades
Specifications
- Brand : Swastik
- Design & Construction : As Per IS: 2097
- Operating Pressure Range : 5.0 to 5.5 Bar
- Foam liquid : P, FP. FFFP. AFFF, AR and S
- Foam Ratio : 1:10
- Discharge (LPM) : 225 to 250
- Jet Length (Maximum) : 20 mtrs.
- Material : Aluminium Alloy
- Weight : 3.2Kg
