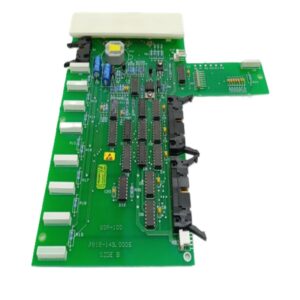

AUTRONICA BSR-100 Autronica BSR-100 Main Board
₹ 146,556.00 GST included

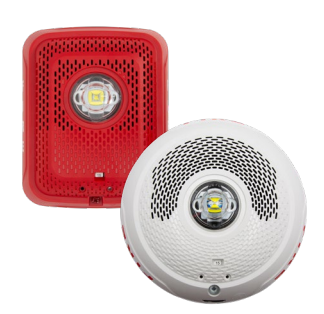

System Sensor – Ceilling Speaker – Model : SPSCWLED
See all products from system-sensor₹ 12,361.68 GST included
Flexible design options meet virtually any application requirement:
wall or ceiling mount, red or white color choices, bezel kits for
alternate markings and languages, and LED color lenses for
distinctive visual signaling. In addition, installers can easily adapt
devices using field selectable candela, using rotary switches.
Description
The System Sensor L-Series and L-Series with LED
platform offers the most versatile and easy-to-use line of speakers
and speaker strobes in the industry with lower current draw and
modern aesthetics. LED lighting technology offers significantly lower
current draw compared to older Xenon bulbs across a full candela
range. This improves design flexibility for notification appliance
circuits (NACs) while also reducing power supply requirements
allowing for simpler and lower cost installations.
Features
- LED technology provides lower current draw
- Digital Volt Meter (DVM) diagnostic test points for Speaker Strobes
- Common aesthetics across the L-Series platform
- Tamper-resistant construction
- Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
- Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
- Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
Specifications
- Standard Operating Temperature 32°F to 120°F (0°C to 49°C)
- Humidity Range 10 to 93% non-condensing
- Strobe Flash Rate 1 Flash Per Second
- Nominal Voltage, Strobe Regulated 24 VDC
- Operating Voltage Range, Strobe 16 to 33 VDC
