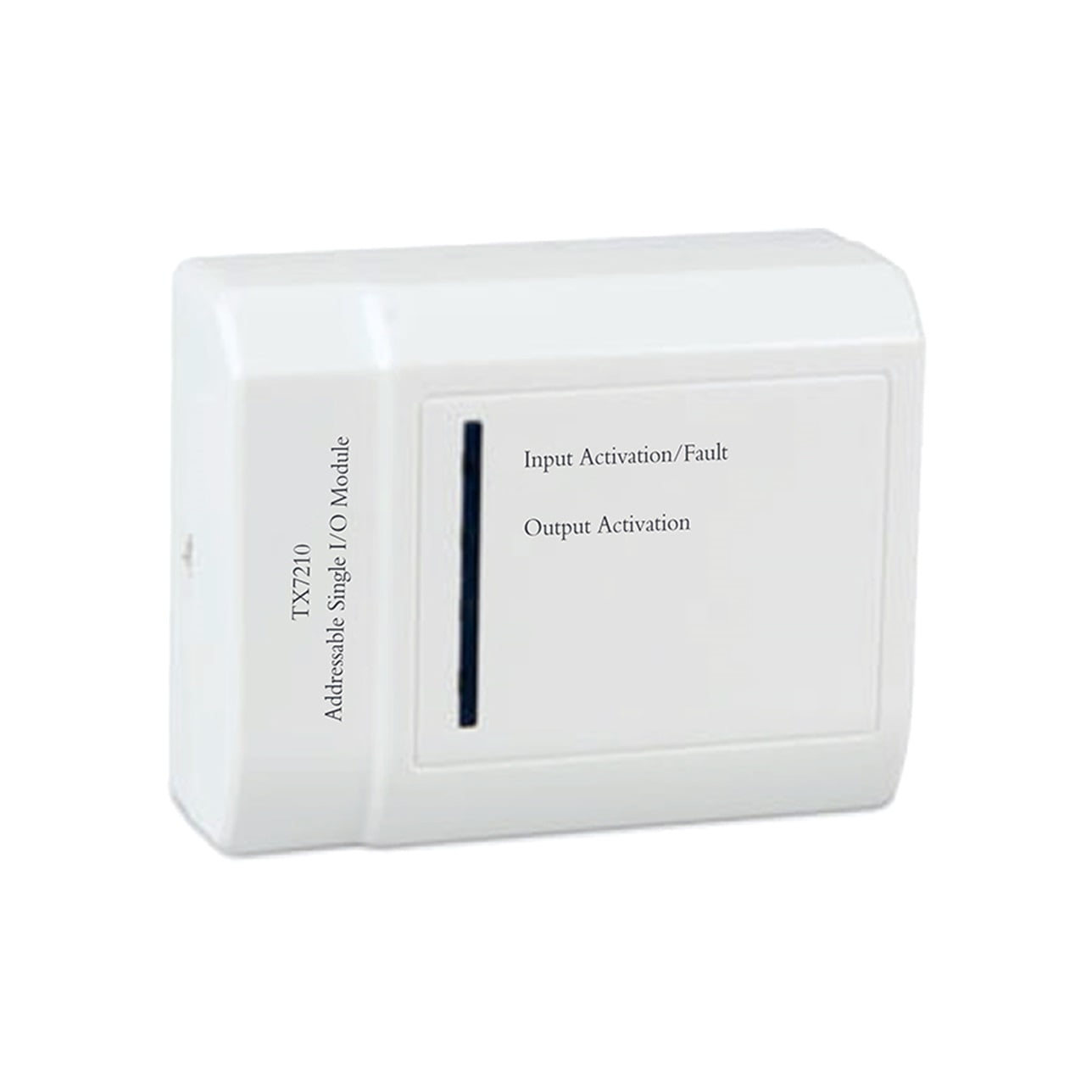

TNA Addressable Single Input/output Module

TNA Addressable Single Input/output Module-TX7210 is characterized as one input or output volt free relay and control module. The TX7210 unit is normally used for overriding equipment such as lift return, door holder, smoke extract fans, air handling unit, auto dialler to fire brigade, BMS and etc. The unit has built-in feedback signal feature, according to the pre-configured interface module command fire scenario, the alarm controller send out start command to the equipment required to start. After receiving the command, output module enables its relay to change state. Once the module is under control and operated a confirmation signal will be sending back to the alarm controller. In addition, the TX7210 addressable single input/output module unit incorporates an intelligent processor that provides automatic monitoring for both open and short circuit of the input signal line.
