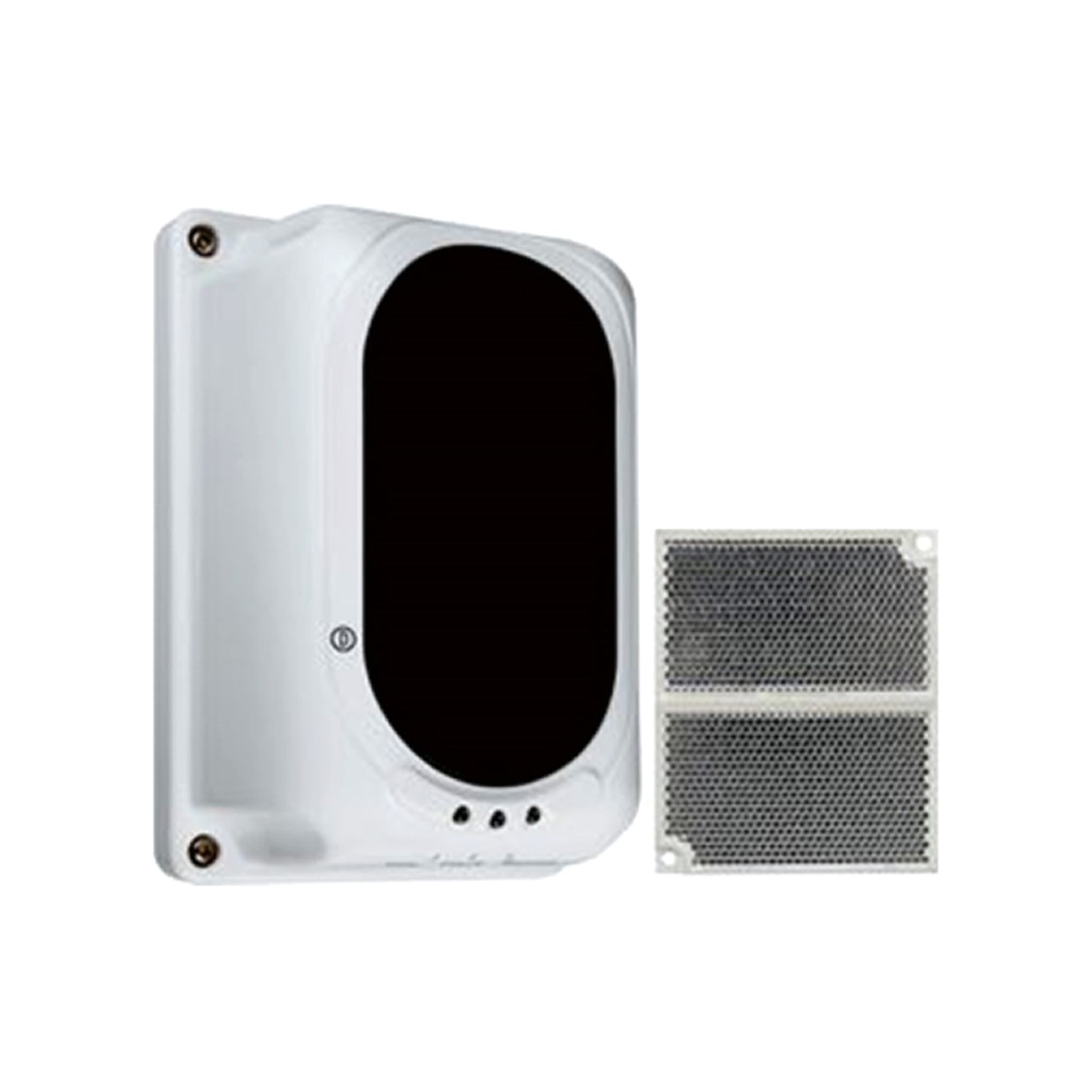

TNA Conventional Reflective Beam Detector
₹ 20,532.00 GST included
EN54-12 Certified. Hassle free alignment, built with digital guide display and laser beam pointing. Employ single-ended design through reflective mirror Four ranges wide monitoring from 8-100 meters via encoder. Three users programming sensitivity adjustment. Built-in microprocessor. Self-diagnosis function can monitor for internal faults Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter. Fire and Fault interfacing relays. Attractive and pleasing appearance. Real User friendly alignment method.
In stock
Product Code : FSIN00001805
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
TNA Conventional Reflective Beam Detector-TX7130 has four adjustable operational ranges of between 8 to 20, 20 to 40, 40 to 70 and 70 to 100 meters beside with three adjustable sensitivity setting ranges from 2.6dB, 3.8dB and 5.8dB to meet the specific environmental requirement. The TX7130 Conventional Reflective Beam Detector works on the principle of reflective infrared beam obscured. Used in conjunction with a reflector, conventional reflective beam detector will notify the fire alarm panel when the infrared beam is obscured by smoke. TX7130 Conventional Reflective Beam Detector is ideal for use high ceiling and wide areas such as warehouses, large storage, shopping, malls, leisure centers, exhibition halls, hotel lobbies, printing houses, garment factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist.
Features
- EN54-12 Certified
- Hassle free alignment, built with digital guide display and laser beam pointing
- Employ single-ended design through reflective mirror Four ranges wide monitoring from 8-100 meters via encoder
- Three users programming sensitivity adjustment
- Built-in microprocessor
- Self-diagnosis function can monitor for internal faults Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter
- Fire and Fault interfacing relays
- Attractive and pleasing appearance
- Real User friendly alignment method
Specifications
- Brand : TNA
- Operating Voltage : 20 V to 28 V DC
- Current Parameters : Standby:23mA Commission:56mA Alarm:33mA
- Beam Path Angle : Plus or Minus 0.5Degree Directional
- Digital Display Guide : Nixie Tube
- LED Indicator Guide : Red: Fire; Yellow: Fault; Green: Alignment
- Material / Colour : ABS / White
- Dimension / Weight : L:190.87 x W:126.87 x H:91.96 mm / 440 gm
- Weight : 0.130 Kg with base
- Accessories : Mounting Bracket/ TX7130-R 4 x Mirror Reflector
