TOA PC-648R Ceiling Speaker for Public Address & Voice Evacuation Systems (MOQ-2Pcs)
₹ 3,894.00 GST included
Special Design for Thin Ceiling. Spring Clamp Mechanism for easy speaker mounting to the ceiling.
In stock
Description

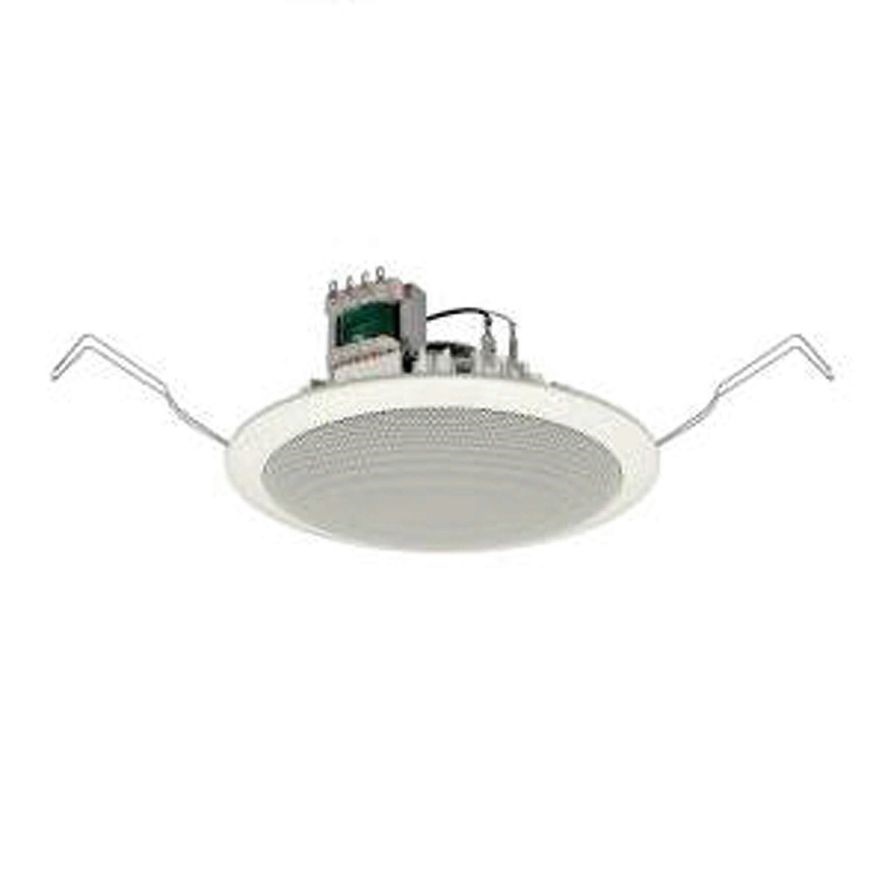

TOA Ceiling Speaker, PC-648R is the Ceiling Mount Speaker with a Metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
Features
- Special Design for Thin Ceiling
- Spring Clamp Mechanism for easy speaker mounting to the ceiling
Specifications
- Brand : TOA
- Rated Input : 6 W (100 V line), 3 W (70 V line)
- Rated Impedance : 100 V line: 1.7 kohm (6 W), 3.3 kohm (3 W), 10 kohm (1 W) 70 V line: 1.7 kohm (3 W), 3.3 kohm (1.5 W), 10 kohm (0.5 W)
- Sensitivity : 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
- Frequency Response : 100 Hz - 18 kHz (peak -20 dB)
- Mounting Hole - Mounting hole: phi 145 plus or minus 5mm, Ceiling thickness: 5 to 25 mm (0.2 - 0.98 inch)
- Speaker Mounting Method : Spring clamp
- Finish - Baffle: Polypropylene resin, white (RAL 9016 equivalent), Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
- Dimensions : Φ168 x 77 (D) mm (Φ6.61 x 3.03 inch)
- Weight : 470 g (1.04 lb)
- Included Accessories : Paper pattern …1
