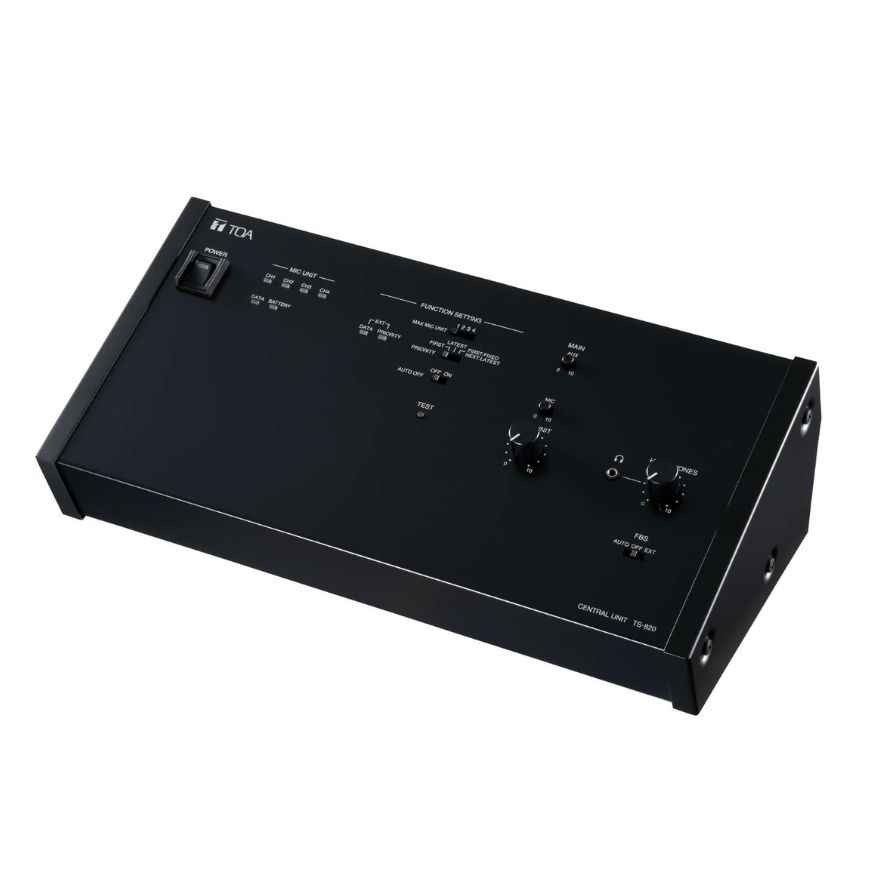

TOA Central Unit, TS-820

Name: TOA Central Unit, TS-820
SKU: FSIN0000362265
Price: 117292.00 INR
Availability: InStock

See all products from toa

₹ 117,292.00 GST included

Main Unit of the System. Up to 64 Conference units Controllable. Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ in/ out. Function setting – Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor. Rack-mountable with MB-TS920 Optional Bracket.

In stock

Compare

Product Code : FSIN0000362265 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Central Unit, TS-820 is a Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-820 can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified. The TS-820 is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. The system can be controlled by PC (1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).(1) Relevant control software is supplied on a custom-made basis.

Features

Main Unit of the System
Up to 64 Conference units Controllable
Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ in/ out
Function setting - Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
Rack-mountable with MB-TS920 Optional Bracket.

Specifications

Brand : TOA
Power Source : 100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption : 72 W
Current Consumption : Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
Input - MIC: minus 60 dB (2), 600 ohm, unbalanced, Ø6.3 mm phone jack (2P) AUX: minus 20 dB (2), 10 kohm, unbalanced, Ø6.3 mm phone jack (2P)
Output - LINE: -10 dB (2), 10 kohm, unbalanced, Ø6.3 mm phone jack (2P) REC: minus 10 dB (2), 10 kohm, unbalanced, RCA pin jack, HEADPHONES: Ø3.5 mm mini jack (3P:monaural)
Operating Humidity : 90 percent RH or less (no condensation)
Finish - Panel: Surface-treated steel plate, black, 30 percent gloss, paint
Weight : 2.7 kg (5.95 lb)
Included Accessories : AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord) x 1
Optional Accessories : Rack mounting bracket: MB-TS920
