TOA H-2 Design Speaker for Public Address & Voice Evacuation Systems
₹ 44,840.00 GST included
2-way Design Speaker. Ferrofluid-cooled Balanced Dome Tweeters, Neodymium Magnet cone woofers. Narrow Coverage area allows a Controlled Sound. Sound Direction can be Adjusted within 360 Deg. High power Handling of 120 W (Continuous Program). Fire-rated ABS Enclosure (UL 94-V0).
In stock
Description

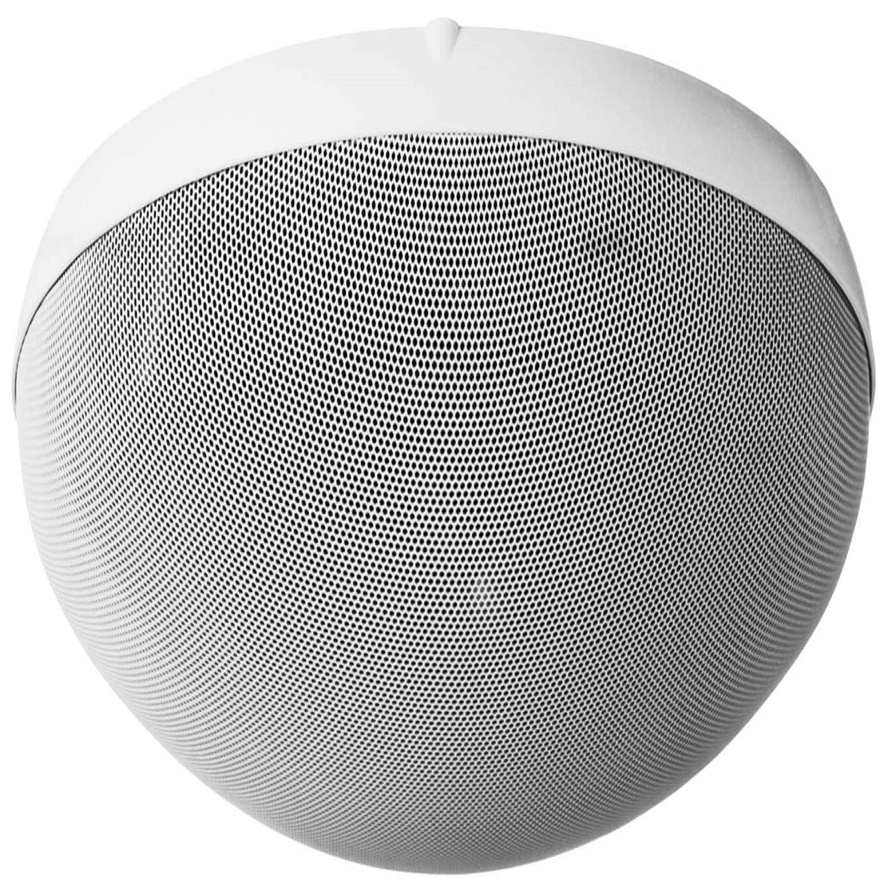

TOA Design Speaker, H-2 is a Dome-shaped, Small Surface-mount 2-way Speaker that ensures Quality Sound Reproduction. The Angle of Speaker can be adjusted for 360 Degrees Parallel to the Mounting Surface.
Features
- 2-way Design Speaker
- Ferrofluid-cooled Balanced Dome Tweeters, Neodymium Magnet cone woofers
- Narrow Coverage area allows a Controlled Sound
- Sound Direction can be Adjusted within 360 Deg
- High power Handling of 120 W (Continuous Program)
- Fire-rated ABS Enclosure (UL 94-V0)
Specifications
- Brand : TOA
- Enclosure : Sealed type
- Rated Input : 12 W (16 ohm, high impedance)
- Rated Impedance : 4 ohm, 16 ohm 100 V line: 830 ohm (12 W), 1.7 kohm (6 W), 3.3 kohm (3 W) 70 V line: 420 ohm (12 W), 830 ohm (6 W), 1.7 kohm (3 W), 3.3 kohm (1.5 W)
- Power Handling : 120 W (continuous program/4 ohm) 40 W (continuous pink noise/4 ohm)
- Frequency Response : 100 Hz - 20 kHz
- Speaker Component : Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
- Input Terminal : Detachable screw terminal, (plus)/(minus) 2 each (for bridging connection)
- Cable Requirements : Solid cable, stranded cable: 0.2 - 2.5 mm2 (AWG No. 24 - 14 equivalent)
- Finish : Punched net: Steel plate, white, paint, Frame: Fire-resistant ABS resin, white, paint Base frame: Steel plate
- Dimensions : 268 (W) x 111 (H)mm
- Weight : 2.1 kg (including adapter frame)
- Included Accessories : Base frame x 1, Electrical box mounting screw x 1 set
