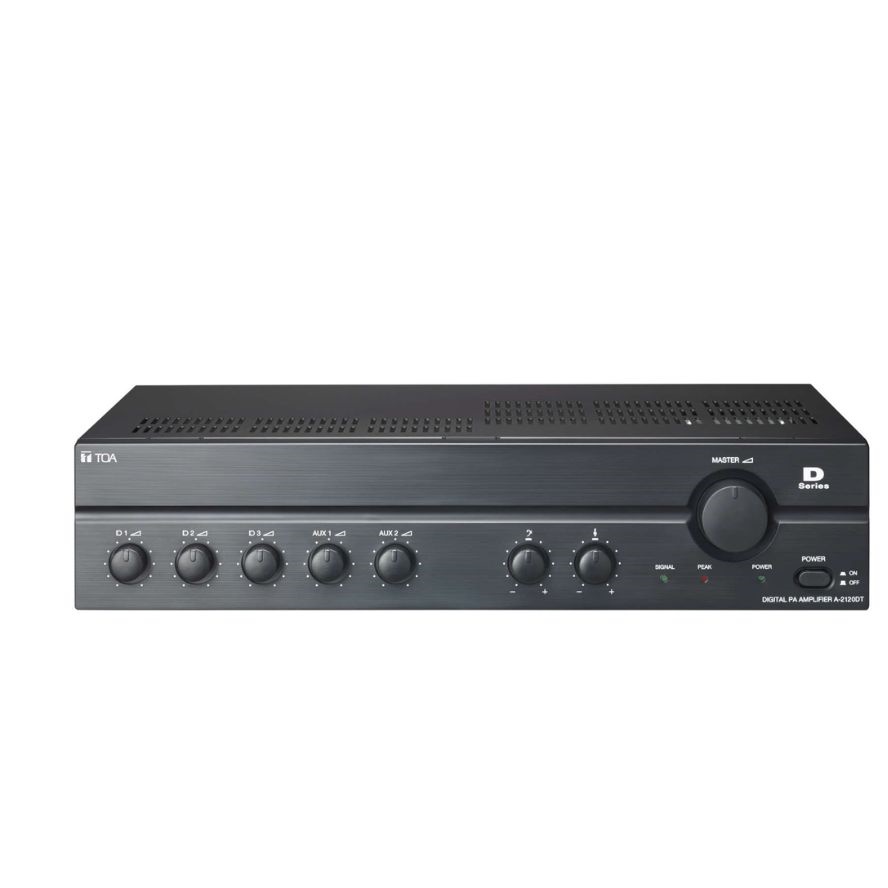

TOA Digital PA Amplifier, A-2240DT-AS

Name: TOA Digital PA Amplifier, A-2240DT-AS
SKU: FSIN0000361707
Price: 33335.00 INR
Availability: InStock

See all products from toa

₹ 33,335.00 GST included

3 Microphone inputs, 2 AUX Input and 1 Recording Output. Speaker Output of Constant Voltage Distribution system (100 V). Independent Tone Control of Boost and Cut Type for both High and Low Frequency.
MIC 1 with Phantom Power and Mute Function. Current Limiter to Prevent Damage due to Current overload. Excess Heat limit to Protect the Transistor and power Transformer. Pre-loaded with 6 Tones. Available in 30 W, 60 W, 120 W and 240 W rated output.

In stock

Compare

Product Code : FSIN0000361707 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Digital PA Amplifier, A-2240DT-AS is a Range of High Performance Digital Mixer Power Amplifiers suited for Broadcasting Paging or Background Music in Schools, Retail Shops, Offices, Factories, Houses of Worship and Large function rooms. It is Pre-loaded with 6 Tones that shall be Triggered by Dry Contact (Chime, Bell, Evac, Siren, Lock Down, All Clear), Specifically for Education Facilities which uses it for Emergency Evacuation Annoucements as well.

Features

3 Microphone inputs, 2 AUX Input and 1 Recording Output
Speaker Output of Constant Voltage Distribution system (100 V)
Independent Tone Control of Boost and Cut Type for both High and Low Frequency
MIC 1 with Phantom Power and Mute Function
Current Limiter to Prevent Damage due to Current overload
Excess Heat limit to Protect the Transistor and power Transformer
Pre-loaded with 6 tones
Available in 30 W, 60 W, 120 W and 240 W rated output

Specifications

Brand : TOA
Power Source : 220 - 240 V, 50/60 Hz
Rated Output : 240 W
Power Consumption : 48 W (AC Operation at 1/8 Maximum output without clip)
Frequency Response : 50 - 20 Hz (Plus or Minus 3 dB)
Distortion : Less than 1% at 1kHz, 1/3 Rated Power
Input : Mic 1-3 : Minus 60 dB (0dB=1V), 600ohm, Balanced, Phone jack. AUX 1-2: Minus 20 dB, 10k ohm, Unbalanced, RCA pin jack
Output Speaker out: Balanced (Floating), High Impedance : 42ohm (100V) Rec Out: 0dB, 600ohm, Unbalanced RCA pin jack
Signal to Noise Ratio : Over 60dB
Indicator : Power LED, Signal LED, Peak LED
