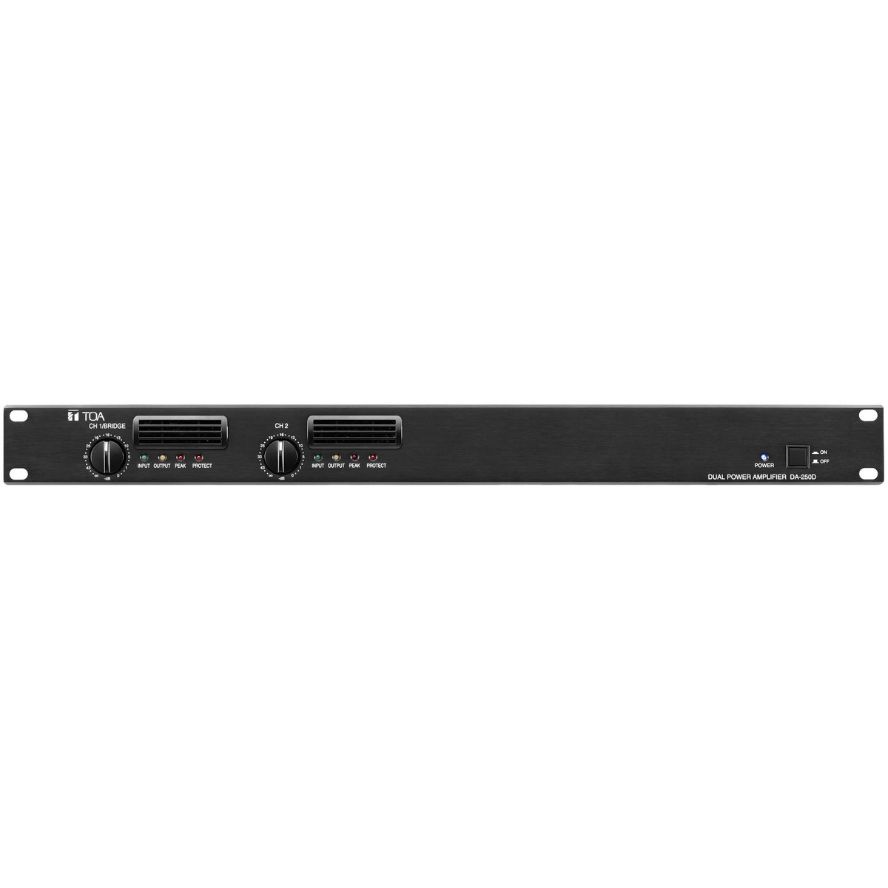

TOA DA-250D Digital Power Amplifier for PA & Voice Alarm Amplification Systems

Name: TOA DA-250D Digital Power Amplifier for PA &amp; Voice Alarm Amplification Systems
SKU: FSIN0000361817
Price: 225380.00 INR
Availability: InStock

See all products from toa

₹ 225,380.00 GST included

4 ohm Speaker Outputs. 2x 250 W Rated Output. Class D Design 85 percent Efficient. Independent Power Supply for each Channel. Light weight and Compact. Stack up to 5 Units without open spaces between Units. Selectable Stereo or Bridge Operation. Forced-air Cooling System. Low Heat Dissipation. Comprehensive Protection Circuitry. Removable Dust Filters for easy Maintenance.

In stock

Compare

Product Code : FSIN0000361817 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Digital Power Amplifier, DA-250D is a 2-Channel Digital Power Amplifier Featuring Lightweight, Compact, High Power output, and high efficiency. It delivers 250 W x 2 channels (4 ohm output) using a Switching Power Supply. Each Channel is equipped with an Independent power section. It can be mounted in an EIA Standard equipment Rack (1 unit size).

Features

4 ohm Speaker Outputs
2x 250 W Rated Output
Class D Design 85 percent Efficient
Independent Power Supply for each Channel
Light weight and Compact
Stack up to 5 Units without open spaces between Units
Selectable Stereo or Bridge Operation
Forced-air Cooling System
Low Heat Dissipation
Comprehensive Protection Circuitry. Removable Dust Filters for easy Maintenance

Specifications

Brand : TOA
Power Source : 220 - 240 V AC, 50/60 Hz
Amplification System : Class D
Power Consumption : 150 W (based on EN standards) 620 W (rated output 4 ohm x 2) 400 W (rated output 8 ohm x 2)
Input : 2 circuits, plus 4 dB (1.23 V) (input level control in maximum position), 10 kohm, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL, OFF: STEREO)
Rated Output : 2 channels: 250 W x 2 (4 ohm), 170 W x 2 (8 ohm) 1 channel (BRIDGE): 500 W x 1 (8 ohm) M4 screw terminal, distance between barriers: 8.8 mm (0.35)
Frequency Response : 20 Hz - 20 kHz (plus or minus 3 dB)
Finish : Panel: Aluminum, black, alumite Case: Plated steel sheet
Dimensions : 482 (W) × 44 (H) × 401.8 (D) mm
Weight : 5.3 kg
Included Accessories Power cord (2 m (6.56 ft) …1, Removable terminal plug (3 pins) …2, Tamper-proof cap …2, Rack mounting screw (with plain washer) …4
