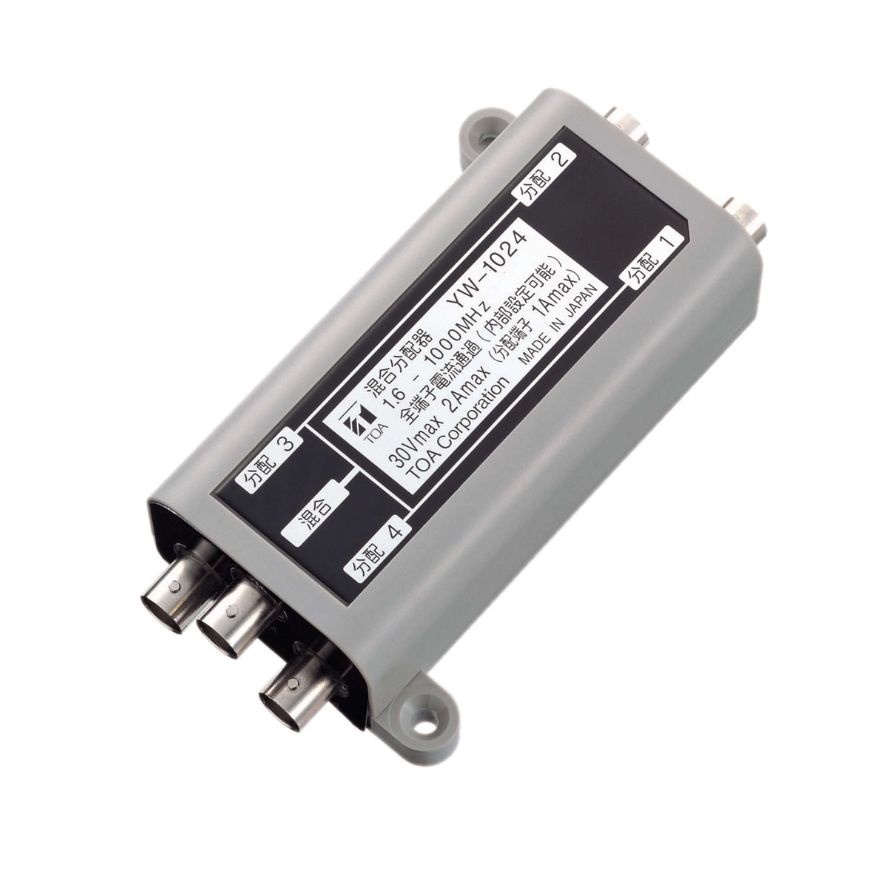

TOA YW-1024 Distributor for PA Network Control & System Integration
₹ 42,480.00 GST included
Work in the Frequency Range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits Easy Power Supply. For 4-Branch Distribution (1 into 4 outputs).
In stock
Description
TOA Distributor, YW-1024 Can Work in the Frequency Range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy Power Supply.
Features
- Work in the Frequency Range of 1.6 to 1000 MHz (except 50 to 70 MHz)
- Power passing type permits Easy Power Supply
- For 4-Branch Distribution (1 into 4 outputs)
Specifications
- Brand : TOA
- Frequency Range : 1.6 - 1000 MHz (excluding 50 - 70 MHz)
- Distribution Loss : 8.5 dB plus or minus 3 dB (between the Mixing and each Distribution terminals)
- Input/Output Impedance : 75 ohm
- Operating Temperature : minus 10 deg.C to plus 50 deg. C (14 deg.F to 122 deg.F)
- Operating Humidity : 90 percent RH or less (no condensation)
- Finish : ABS resin, gray
- Dimensions : 75 (W) x 122 (H) x 34 (D) mm (2.95 inch x 4.8 inch x 1.34 inch)
- Weight : 120 g (0.26 lb)
- Included Accessories : Unit fixing wood screw (4.1 x 25) …2
