TOA TS-918 Expansion Unit for PA System Installation & Mounting

Name: TOA TS-918 Expansion Unit for PA System Installation &amp; Mounting
SKU: FSIN0000362273
Price: 96760.00 INR
Availability: InStock

See all products from toa

₹ 96,760.00 GST included

Interface for incorporating the wired conference unit(s) into the conference system. Can be mounted in an EIA Standard equipment rack (1 unit size). Auto Mic-Off function to prevent inadvertent microphone shutoff failure. Speaker Restriction Function. Speeches can be Addressed to Audience via Externally Interlinked sound Reinforcement System.

In stock

Compare

Product Code : FSIN0000362273 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

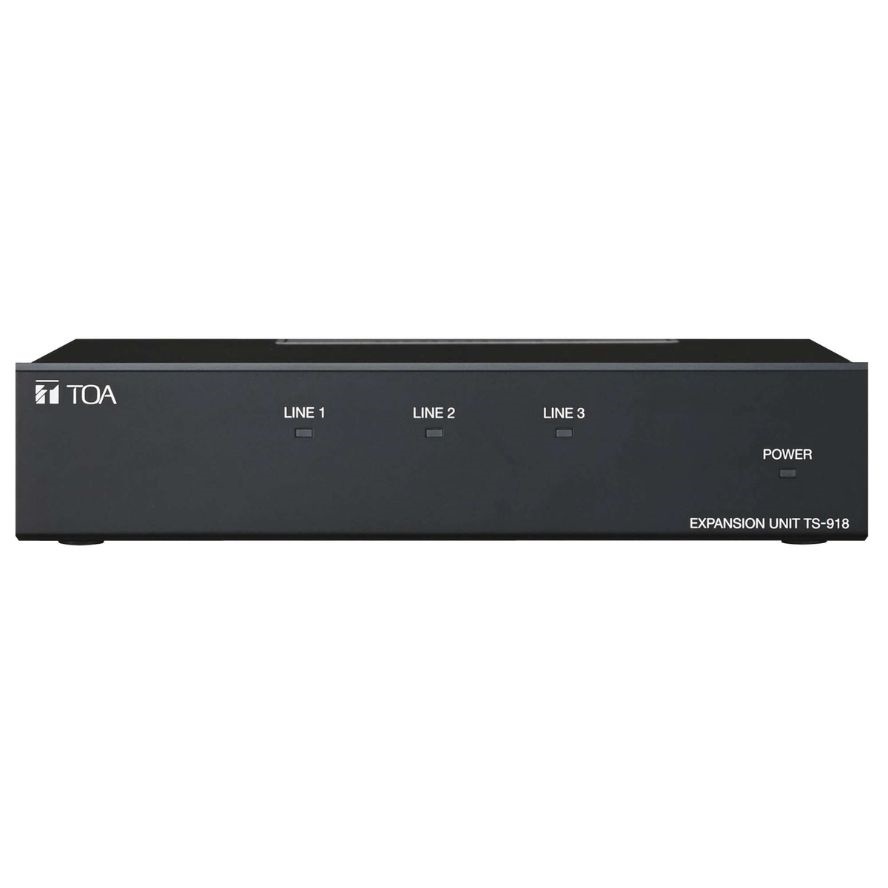

TOA Expansion Unit, TS-918 is an Interface Necessary for Incorporating the Wired conference unit(s) in the conference system. It is connected to the TS-910 Central unit with a coaxial cable and to the TS-919B1 or TS-919B4 Bridge unit with a Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

Features

Interface for incorporating the wired conference unit(s) into the conference system
Can be mounted in an EIA Standard equipment rack (1 unit size)
Auto Mic-Off function to prevent inadvertent microphone shutoff failure
Speaker Restriction Function
Speeches can be Addressed to Audience via Externally Interlinked sound Reinforcement System

Specifications

Brand : TOA
Power Source : 100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption : 74.4 W
Current Consumption Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter)
Gain : Upstream: plus 16.5 dB, Downstream: plus 12.5 dB
Connection Terminal : Central unit connection terminal: BNC jack, Bridge unit connection terminal: RJ45 connector
LED Indicator : Connection status indicators (3 LEDs each on the front and rear panels), Power indicator
Number of Connectable Conference Units : Up to 24 units (when using 21 units of TS-919B1 or 6 units of TS-919B4, both optional Expansion units)
Operating Temperature 0 Deg. to plus 40 Deg. C
Finish - Panel: Aluminum, black, 30 percent gloss, melamine-baked paint
Dimensions : 210 (W) x 44 (H) x 296.5 (D) mm (8.27 x 1.73 inch x 11.67 inch)
Weight : 1.6 kg (3.53 lb)
Included Accessories : AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft), detachable AC cord)…1, BNC plug-to-BNC plug cord (50 cm (1.64 ft) …1
