TOA VM-3240E Extension Amplifier for PA & Voice Alarm Amplification Systems

Name: TOA VM-3240E Extension Amplifier for PA &amp; Voice Alarm Amplification Systems
SKU: FSIN0000362334
Price: 388220.00 INR
Availability: InStock

See all products from toa

₹ 388,220.00 GST included

System management amplifier can be expanded by connecting up to 9 extension amplifiers. 240 W rated output. 6 Speaker line outputs. 8 control inputs and 8 control outputs for general purpose. 6 Control inputs for emergency purpose and 3 control outputs for status information. Connection to system management amplifier via VM Link.

In stock

Compare

Product Code : FSIN0000362334 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

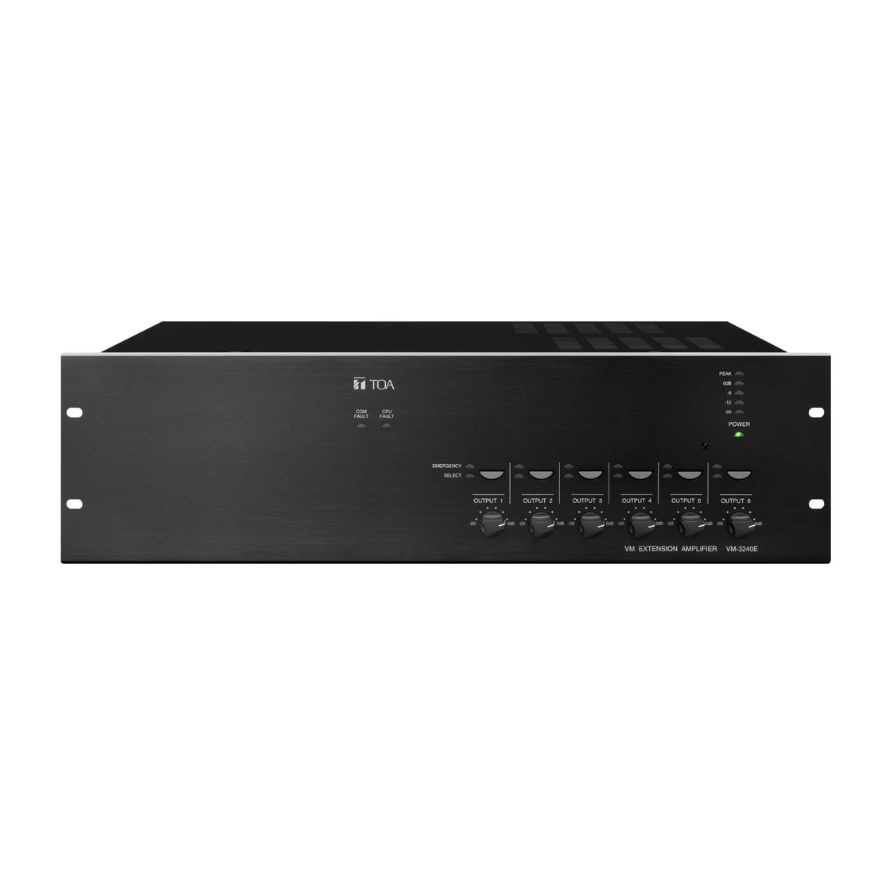

TOA Extension Amplifier, VM-3240E is a Multifunctional Amplifier that can be Mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

Features

System management amplifier can be expanded by connecting up to 9 extension amplifiers
240 W rated output
6 Speaker line outputs
8 control inputs and 8 control outputs for general purpose
6 Control inputs for emergency purpose and 3 control outputs for status information
Connection to system management amplifier via VM Link

Specifications

Brand : TOA
Power Source : 230 V AC, 50/6 Hz
Power Consumption : 600 W (with rated output signal), 260 W (according to EN62368-1)
Rated Output : 240 W
Frequency Response : 50 Hz - 20 kHz, plus or minus 3 dB (at 1/3 rated output)
Distortion : 0.7 percent or less (at rated output, 1 kHz)
Finish : Panel: Aluminum, hair-line, black, Case: Surface-treated steel plate, black, paint
Dimensions : 482 (W) x 132.6 (H) x 407 (D) mm (18.98 inch x 5.22 inch x 16.02 inch)
Weight : 16.5 kg (36.38 lb)
Included Accessories : Power cable (2 m (6.56 ft) x 1, Link cable (3 m (9.84 ft) x 2, Removable terminal plug (14 pins) x 3, Removable terminal plug (16 pins) x 1
