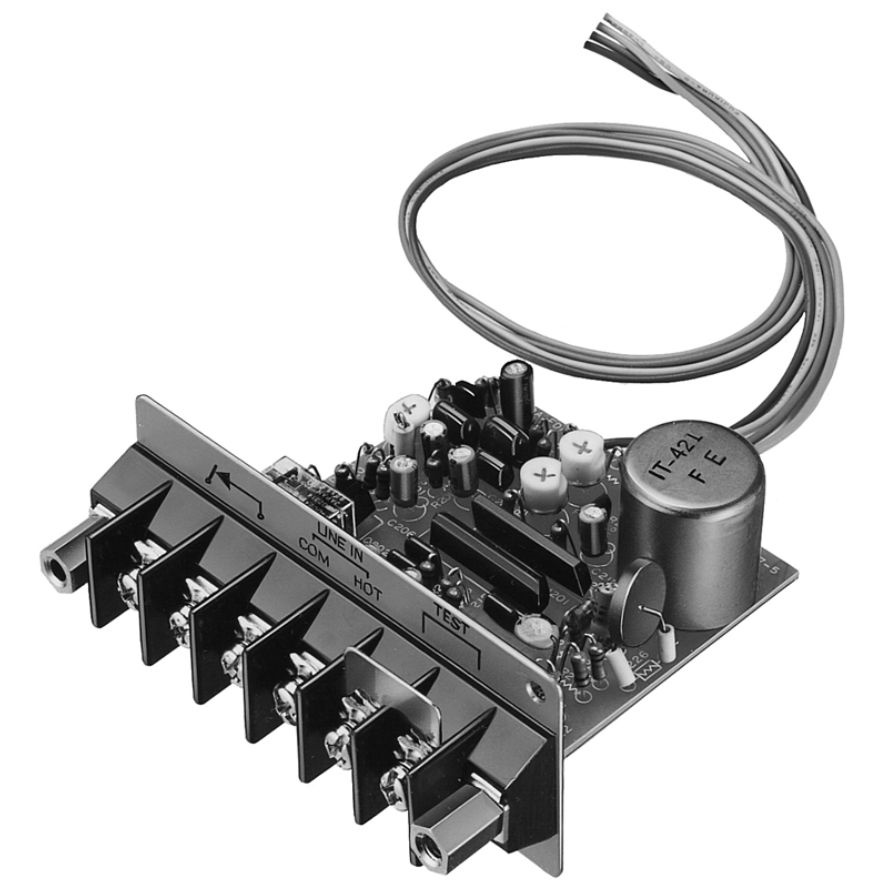

TOA YA-1000A Fault Detection Circuit Module for PA Network Control & System Integration
₹ 23,600.00 GST included
Detects the Power Amplifier’s Failure.
In stock
Description
TOA Fault Detection Circuit Module, YA-1000A is Installed in a Power Amplifier to Detect the power Amplifier’s Failure. Avoid using the YA-1000A during the power Amplifier’s parallel operation because it cannot detect a Failure Correctly.
Features
- Detects the Power Amplifier's Failure.
Specifications
- Brand : TOA
- Power Source : 24 V DC (supplied from the power amplifier)
- Power Consumption : 20 mA
- Input : LINE IN: Connects to the power amplifier's output (high impedance 100 V line), M4 screw terminal, distance between barries: 9 mm
- Detected Fault Indication : Power amplifier's power indicator is extinguished
- Fault Detection Output : Relay contact closes. Withstand voltage: 30 V DC, current capacity: 1 A
- Usable Amplifier : VP-1061, VP-1120B, VP-1121, VP-1240B, VP-1241, VP-1361, PA-3640VB
- Weight : 140 g
- Accessory : Terminal block cover…1, Amplifier mounting screw…2, Cover mounting screw…2
