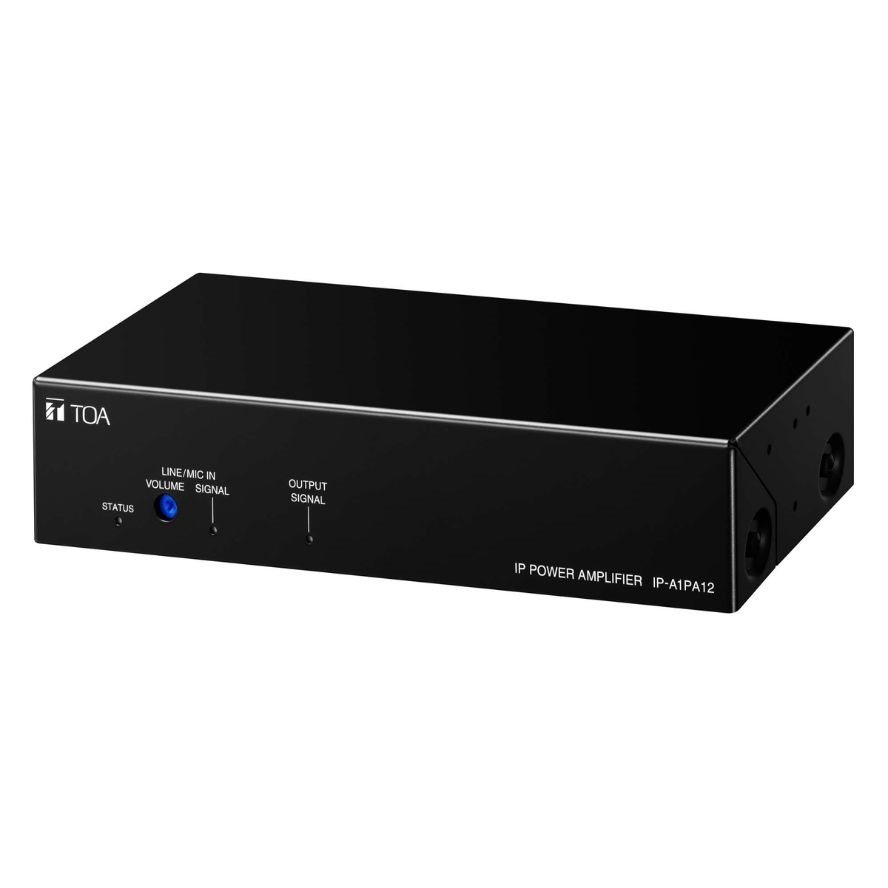

TOA IP Power Amplifier 12W, IP-A1PA12

Name: TOA IP Power Amplifier 12W, IP-A1PA12
SKU: FSIN0000362023
Price: 60652.00 INR
Availability: InStock

See all products from toa

₹ 60,652.00 GST included

12W Amplifier to Drive 100/70/25V line Speakers. Receive SIP audio, ONVIF and Multicast. Local broadcast using Internal Audio files or local Audio source. External Amplifier input (100/70/25V) to share Speakers between the Built-in amplifer and External PA amplifier to be Switched over. 1 Audio Input (LINE/MIC selectable, Phantom Power On/Off). 2 Control inputs, 1 Control output and 1 mute control input. HTTP/ HTTPS Commands (receive). Audio File Storage (20 files, total 80MB, WAV/MP3)
Playback programs (Repeat, Weekly Timer)
PoE Plus powered.

In stock

Compare

Product Code : FSIN0000362023 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA IP Power Amplifier 12W, IP-A1PA12 is a Compact 12 W Amplifier which is Designed to Amplify Audio Signals received through Network. It is Equipped with 25 V, 70 V and 100 V Speaker line outputs to drive wide range of high Impedance Speakers. With an External Amplifier input Capability, Speaker(s) can be driven by Internal Amplifier or External Amplifier by switching over. It allows Integrations with IP camera systems by using ONVIF protocol, paging from IP Phone systems by using SIP protocol and group Broadcast by Multicast Streaming. Max. 20 Audio files can be registered and they can be played back by control inputs or remote API (HTTP/HTTPS) commands.

Features

12W Amplifier to Drive 100/70/25V line Speakers
Receive SIP audio, ONVIF and Multicast
Local broadcast using Internal Audio files or local Audio source. External Amplifier input (100/70/25V) to share Speakers between the Built-in amplifer and External PA amplifier to be Switched over
1 Audio Input (LINE/MIC selectable, Phantom Power On/Off)
2 Control inputs, 1 Control output and 1 mute control input
HTTP/ HTTPS Commands (receive)
Audio File Storage (20 files, total 80MB, WAV/MP3)
Playback programs (Repeat, Weekly Timer)
PoE Plus powered

Specifications

Brand : TOA
Power Source : PoE plus (IEEE802.3at Class 4)
Power Consumption : 25 W (rated output) 6 W (IEC62368-1)
Amplifier Rated Output : 12 W
Frequency Response : 100 Hz - 20 kHz
Audio Codec : Opus, PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time : Min. 100 ms (1)
Network I/F : 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Finish : Front case: Surface-treated steel plate, black, paint, Rear chassis: Surface-treated steel plate
Dimensions 210 (W) x 44 (H) x 81.5 (D) mm (excluding projection)
Weight : 940 g (2.07 lb)
