TOA RU-2002 Microphone Pre-amplifier for PA & Voice Alarm Amplification Systems
₹ 59,000.00 GST included
Microphone pre-amplifier for microphones with DIN plug. Talk Switch activates Relay Contact. Balanced low impedance 1-volt audio output allows long Cable Runs. Volume Control on front. 4 built-in Chimes (selectable). Chime Volume Control on front.
In stock
Description

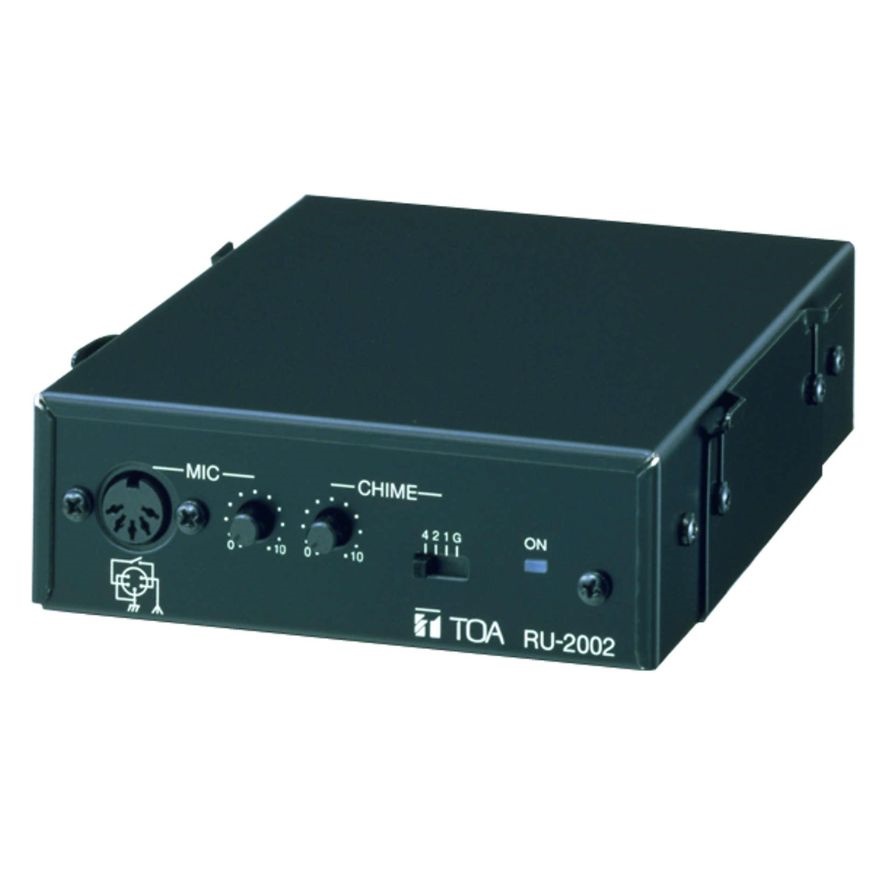

TOA Microphone Pre-amplifier, RU-2002 is a Microphone Pre-amplifier with chimes for the PM-660D or PM-1200D paging microphones with a 5-pin DIN socket. The talk switch of the microphone activates an isolated relay output that can be used for remote controls. The RU-2002 provides 4 different chimes.
Features
- Microphone pre-amplifier for microphones with DIN plug
- Talk Switch activates Relay Contact
- Balanced low impedance 1-volt audio output allows long Cable Runs
- Volume Control on front
- 4 built-in Chimes (selectable)
- Chime Volume Control on front
Specifications
- Brand : TOA
- Power source : 12 V DC
- Power/ Current consumption : 60 mA
- Audio input : minus 62 dBV, 600 ohm, unbalanced, 5-pin DIN socket
- Audio output : 0 dBV, 600 ohm, balanced, M3 screw terminal, distance between barriers: 6.4 mm
- Control input : 1x no-voltage make contact input
- Control output : No-voltage make contact, max. 30 V DC, max. 0.5 A
- Controls : Microphone volume control
- Finish : black
- Dimensions : 124 x 42.5 x 159 mm (W x H x D)
- Weight : 0.6kg
