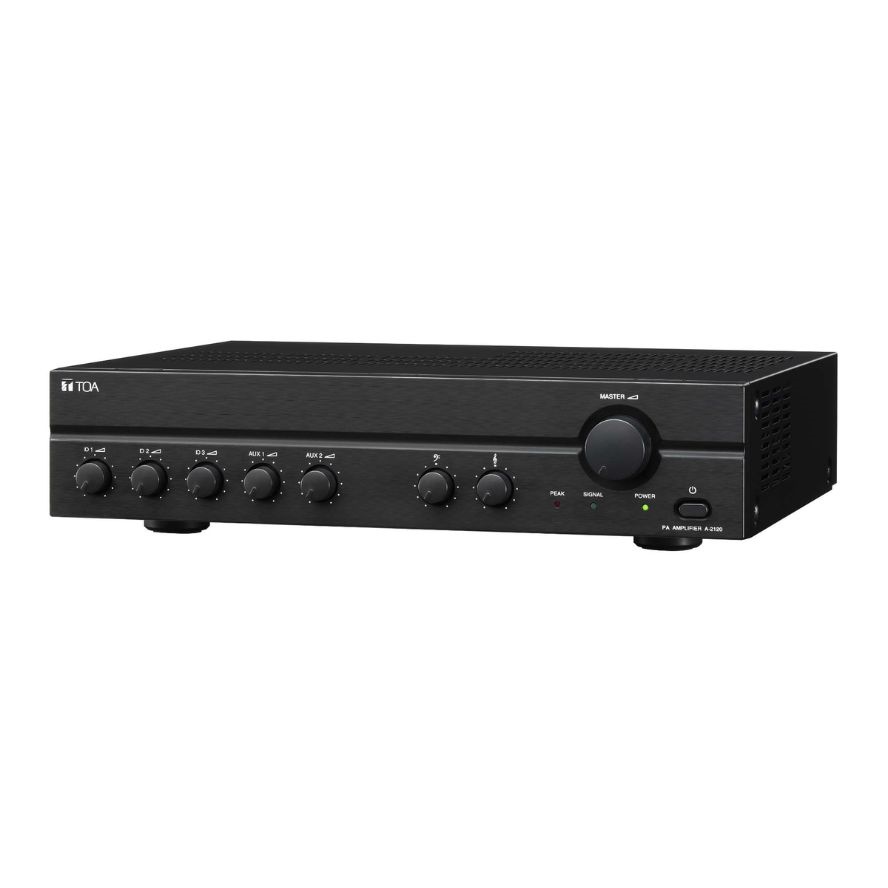

TOA Mixer Amplifier A-2240
₹ 34,692.00 GST included
4 Versions Available: 30 W, 60 W, 120 W or 240 W. User-friendly front Panel allows Easy Operation. Excellent Frequency Response.
3 Electronically Balanced Microphone inputs, 2 AUX inputs and Recording Output.
Phantom power is provided to MIC 1, for Supplying power to a Condenser Microphone. Wide Tone-control Adjustment range of Plus or Minus 10dB for both bass and Treble. 100 V / 70 V line or 4 ohm speaker outputs. 2-unit Size.
In stock
Description
TOA Mixer Amplifier A-2240 is a High Cost-Performance Mixer Power Amplifier suited for Broadcasting Paging or Background Music in Schools, Offices, Shops, Factories, Mosques, Churches and Large rooms.
Features
- 4 Versions Available: 30 W, 60 W, 120 W or 240 W
- User-friendly front Panel allows Easy Operation
- Excellent Frequency Response
- 3 Electronically Balanced Microphone inputs, 2 AUX inputs and Recording Output
- Phantom power is provided to MIC 1, for Supplying power to a Condenser Microphone
- Wide Tone-control Adjustment range of Plus or Minus 10dB for both bass and Treble
- 100 V / 70 V line or 4 ohm speaker outputs
- 2-unit Size
Specifications
- Brand : TOA
- Power Source : 220 - 240 V AC, or 24 - 30 V DC
- Rated Output : 240 W
- Power Consumption : 238 W (EN60065), 520 W (AC operation at rated output), 15 A (DC operation at rated output)
- Frequency Response : 50 - 20,000 Hz (Plus or Minus 3 dB)
- Distortion : Less than 1% at 1kHz, 1/3 Rated Power
- Input : Mic 1-3 : Minus 60 dB (0dB=1V), 600ohm, Balanced, 3P XLR. AUX 1-2: Minus 20 dB, 10k ohm, Unbalanced, RCA pin jack
- Output Speaker out: Balanced (Floating), High Impedance : 42ohm (100V), 21 ohm (70 V), Low Impedance: 4 ohm (31 V), Rec out: 0 dB, 600 ohm, Unbalanced, RCA pin jack
- Signal to Noise Ratio : Over 60dB
- Indicator : Power LED, Signal LED, Peak LED
