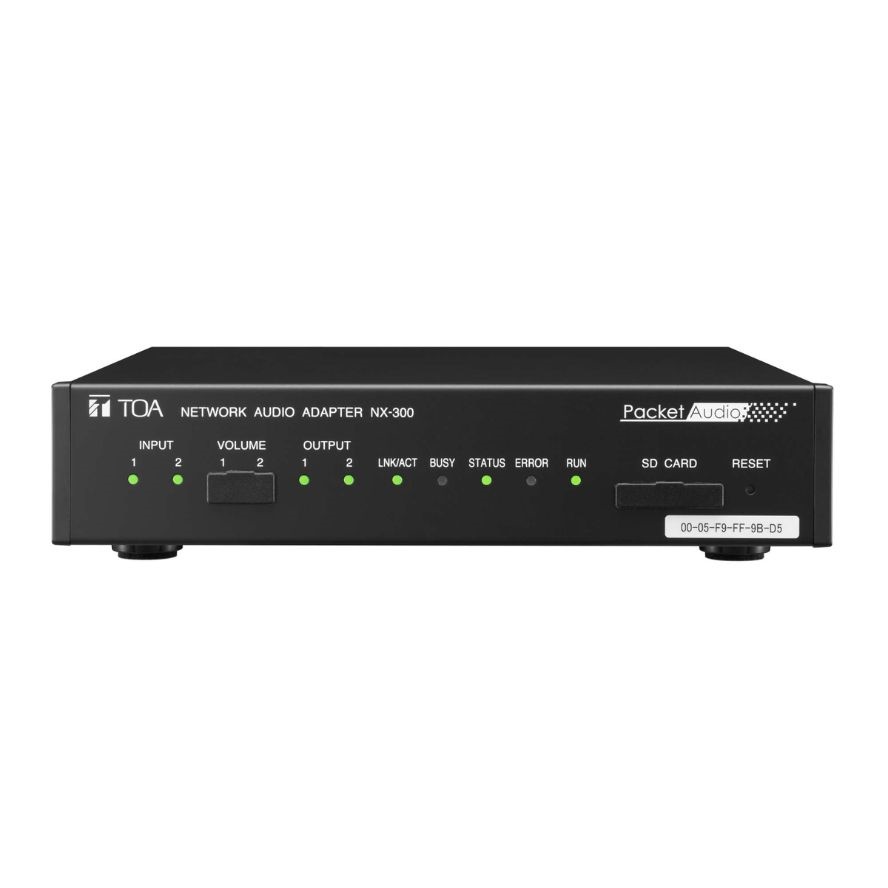

TOA Network Audio Adapter, NX-300

Name: TOA Network Audio Adapter, NX-300
SKU: FSIN0000362097
Price: 141600.00 INR
Availability: InStock

See all products from toa

₹ 141,600.00 GST included

Audio Network Adapter for Transmitting Audio and Control Signals via LAN. Dual-channel capable of bi-directional (full-duplex) Dual Mono signals. Up to 500 NX-300s can be Connected to each other via LAN. Up to 1,000 links can be Established. 1 Input Audio Signal can be Streamed to Max. 16 NX-300W (unicast) or max. 64 NX-300W
(multicast) Simultaneously.

In stock

Compare

Product Code : FSIN0000362097 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Network Audio Adapter, NX-300 is a Network Audio Adapter that Utilizes Packet Audio Technology which makes it possible to transmit high-quality audio signals in real time. Connecting the NX-300 to a network (LAN or WAN) permits high-quality audio or contact control signals to be transmitted in real time. As existing networks can be used, systems can be constructed with no need for the installation of new wiring. Broadcasts using audio files and up to 8 different levels of priority control can also be made, and provided by stations, factories or other central facilities to individual bases.
It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.

Features

Audio Network Adapter for Transmitting Audio and Control Signals via LAN
Dual-channel capable of bi-directional (full-duplex) Dual Mono signals
Up to 500 NX-300s can be Connected to each other via LAN
Up to 1,000 links can be Established
1 Input Audio Signal can be Streamed to Max. 16 NX-300W (unicast) or max. 64 NX-300W
(Multicast) Simultaneously

Specifications

Brand : TOA
Power Source : Supplied from an external 24 V DC (21.6 - 26.4 V) power supply or AC adapter AD-246 (option) or the equivalent
Current Consumption : 10 W (AC operation), 310 mA (DC operation)
Frequency Response : 50 Hz - 18 kHz, (48 kHz sampling frequency, PCM, 0 to -6 dB deviation referred to 1 kHz)
Distortion : 0.2 percent or less (1 kHz, LINE signal level, 48 kHz sampling frequency, PCM, BPF)
Signal to Noise Ratio : 73 dB or more (LINE signal level, at rated output)
Separation : 70 dB or more (1 kHz, LINE signal level, BPF)
Audio Format : WAV file
Finish : Pre-coated steel plate, black, 30 percent gloss
Dimensions : 210 (W) x 44.3 (H) x 258 (D) mm (8.27 inch x 1.74 inch x 10.16 inch)
Weight : 1.7 kg (3.75 lb)
Included Accessories : Removable terminal plug (3 pins) x 1, Removable terminal plug (6 pins) x 2, Removable terminal plug (9 pins) x 2, Removable terminal plug (4 pins) x 1, Plastic foot x 4, Screw for fitting plastic foot x 4
