TOA VX-1000PF Peering Frame for PA System Installation & Mounting

Name: TOA VX-1000PF Peering Frame for PA System Installation &amp; Mounting
SKU: FSIN0000362342
Price: 128620.00 INR
Availability: InStock

See all products from toa

₹ 128,620.00 GST included

Supplies Power to the Power Amplifier Module inserted in it. Displays Operation and Fault Status of the Power Amplifier Module. Supports Redundancy for power supply. If Power supply A Fails, Automatically switch to Power supply B. When Power supply A Returns to Normal, it will Automatically return to Power supply A. Standard 4U rack-mounted design.

In stock

Compare

Product Code : FSIN0000362342 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

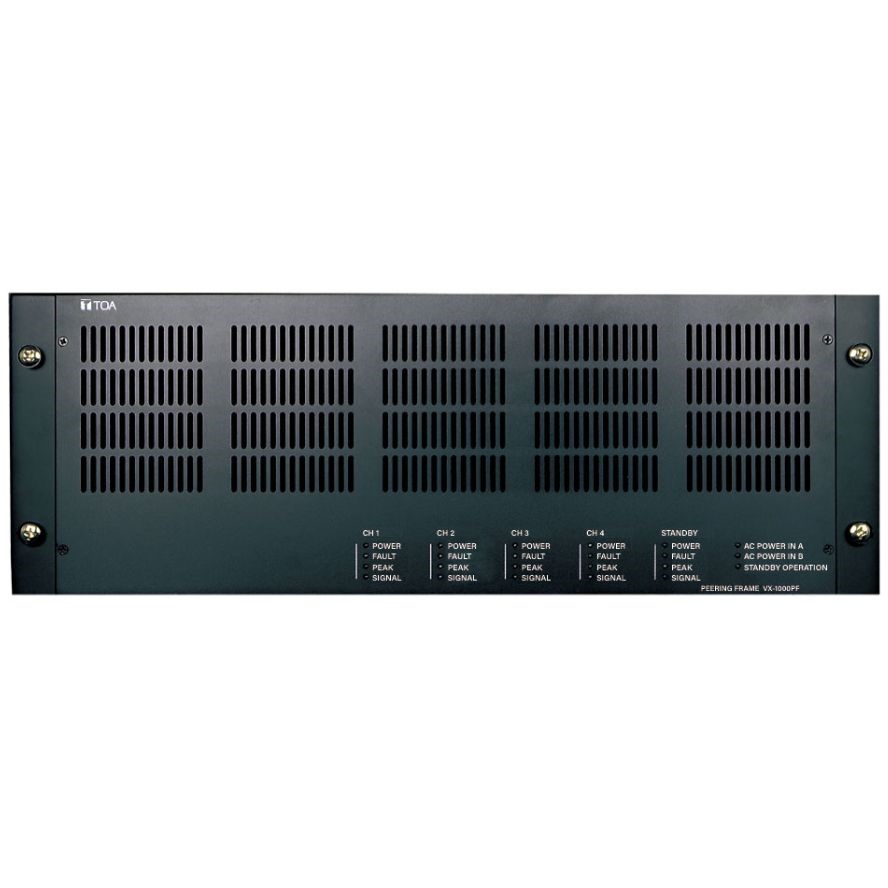

TOA Peering Frame, VX-1000PF is used to supply power to the power amplifier module inserted in it. The operation and fault status of the power amplifier module can be displayed. It can also show if the standby power amplifier is in working order. It supports redundancy for power supply, usually from the Power supply A, when the Power supply A fails, it can automatically switch to Power supply B. When Power supply A returns to normal, it will automatically return to Power supply A. Standard 4U rack-mounted design.

Features

Supplies Power to the Power Amplifier Module inserted in it
Displays Operation and Fault Status of the Power Amplifier Module
Supports Redundancy for power supply
If Power supply A Fails, Automatically switch to Power supply B
When Power supply A Returns to Normal, it will Automatically return to Power supply A
Standard 4U rack-mounted design

Specifications

Brand : TOA
Power Supply : AC POWER IN A/B: AC 220 - 240 V, 50/60 Hz, European standard terminal
Power Consumption : 3.5 W (When the main power port & power amplifier unit is not inserted)
Power Amplifier Module Slot : 4 Channels
Stand-by Amplifier Module Slot : 1 Channel
Operating Temperature minus 10 deg.C to plus 55 deg.C
Finish Pane l: Aluminum profile surface, oxidation treatment, black
Dimensions : (W x H x D) 483 × 177 × 395 mm
Weight : 8.77 kg
Accessory : Foot Pad (FF-7) x 4, Fuse (6S15A) x 1, Power Cable x 2 (only when a single device is shipped)
