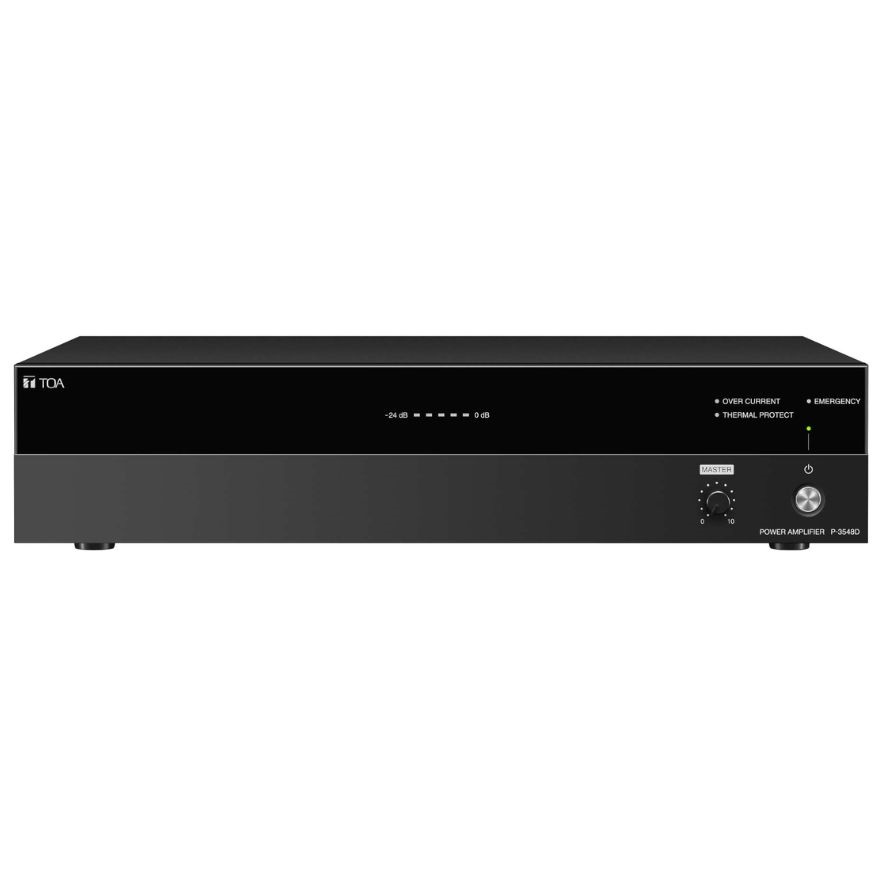

TOA P-3548D Power Amplifier for PA & Voice Alarm Amplification Systems
₹ 162,840.00 GST included
TOA Class D Amplifier for Maximum efficiency. 480 W Output Power. Supplied with 1 line Input. Switchable 100V Line or low Impedance Speaker Output.
In stock
Description
TOA Power Amplifier, P-3548D Can be Used as a Stand-alone Amplifier or as a Booster Amplifier for the Optional A-3600D/ A-3500D Series. Capable of Remote Power ON/ OFF and Emergency Broadcasting connected with optional A-3600D/A-3500D Series.
Features
- TOA Class D Amplifier for Maximum efficiency
- 480 W Output Power
- Supplied with 1 line Input
- Switchable 100V Line or low Impedance Speaker Output
Specifications
- Brand : TOA
- Power Source : 220 to 240 V AC, 50/60 Hz
- Power Consumption : 601 W (rated output), 113 W (based on EN62368)
- Current Consumption : 200 mA or less (when power switch is OFF)
- Rated Output : 480 W
- Frequency Response : 50 Hz to 20 kHz plus or minus 3 dB (1/8 rated output)
- Distortion : 1 percent or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)
- Indicators : 5-point LED output level meter, Power indicator, Emergency indicator, Thermal protection indicator, Over current protection indicator
- Finish - Panel: ABS resin, black, Case: Surface-treated steel plate, black, paint
- Dimensions : 420 (W) x 96.1 (H) x 313.1 (D) mm (16,54 inch x 3.78 inch x 12.33 inch)
- Weight : 5 kg (11.02 lb)
- Optional Accessories : Rack mounting bracket: MB-25B, Perforated panel: PF-013B
