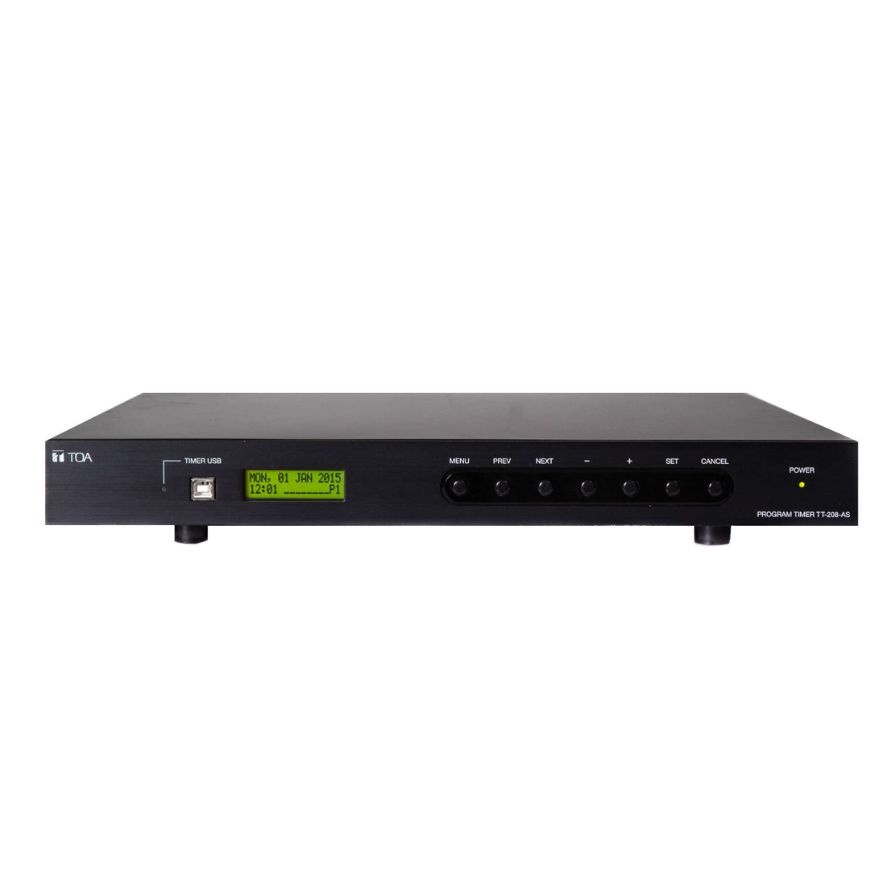

TOA TT-208-AS Program Timer for PA Network Control & System Integration
₹ 138,060.00 GST included
Built-in Westminster Chime. Weekly timer with 4 Programs. 8 Channels and Control Contacts. 80 Schedules per channel, Programmable by PC or LCD Menu. Internal memory can be retained for approx. 100 hours by the internal battery backup in the event of power outage.
In stock
Description
TOA Program Timer, TT-208-AS is a Weekly Program Timer that comes with 8 Channels out contact switch and 1 output contact with Westminster chime audio. Can be use with an optional rack-mount bracket to mount on an EIA standard equipment rack, occupying 1 U size).
Features
- Built-in Westminster Chime
- Weekly timer with 4 Programs
- 8 Channels and Control Contacts
- 80 Schedules per channel, Programmable by PC or LCD Menu
- Internal memory can be retained for approx. 100 hours by the internal battery backup in the event of power outage
Specifications
- Brand : TOA
- Power Source : 220 - 230 V AC, 50/60 Hz
- Power Consumption : 10W
- Frequency Response : 20Hz – 20kHz
- Audio Output : Westminster Chime Level : 0 dB, 600 ohm
- Control Output : 8 Channels contact switch (NO), 1 output contact switch (NO)
- Synchronize Time : Send out pulse per 1 minute
- Display : Power indicator: Green, LCD Character: Back Light Green, USB Indicator PC Link: Orange
- Operating Temperature : 0 deg. C to plus 40 Deg. C
- Operating Humidity : Under 90 percent RH (no condensation)
- Finish - Front panel: Aluminum, Black, Alumite, Case: SECC plate, black, Paint
- Dimensions : 420 (W) x 59 (H) x 342 (D) mm ( 16.54 inch x 2.32 inch x 13.46 inch)
