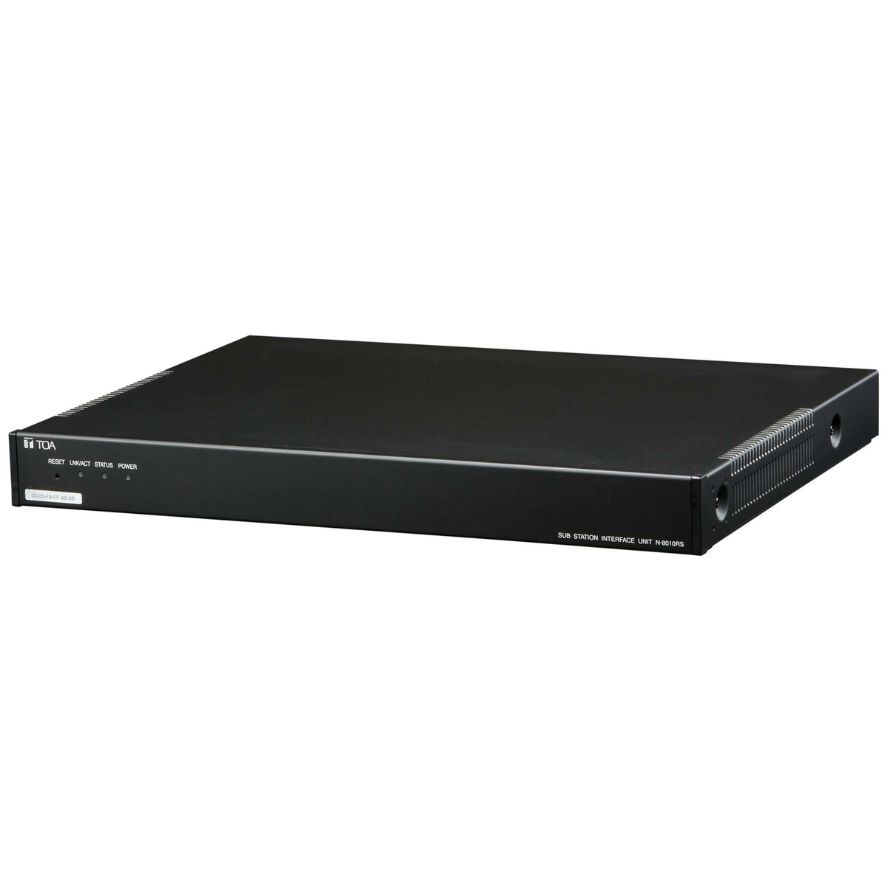

TOA N-8010RS Sub-station Interface Unit for Intercom & Conference Systems
₹ 429,520.00 GST included
10 Base-T/ 100 Base-TX Ethernet Network Connection. 16 sub-station Capacity. 3-wire Connection Between Stations and Unit. 2 speech links.
In stock
Description
TOA Sub-station Interface Unit, N-8010RS is a Sub-station Interface Unit Designed for use with TOA’s Packet Intercom System (IP network-compatible intercom system) that employs the packet audio technology. Up to 16 sub-stations can be connected using 2-core shielded cables. The number of LAN-connected N-8000 system components such as the N-8010RS and IP intercom exchanges is 192 maximum in total. Connecting the unit to the LAN permits the sub-station to receive paging calls and make calls to both the master station connected to the IP intercom exchange and the IP master station.
Features
- 10 Base-T/ 100 Base-TX Ethernet Network Connection
- 16 sub-station Capacity
- 3-wire Connection Between Stations and Unit
- 2 speech links
Specifications
- Brand : TOA
- Power Source : 220 V- 240 V AC 50/60 Hz
- Power Consumption : 32 W (at rated) (max.), 38 W (max.)
- Indicator : LNK/ ACT indicatior, Status indicator, amp, Power indicatior
- Other : Firmware update function, System data hold function, Reset switch (front panel), Forced air cooling
- Installation Method : Rack, Desk, Surface mount
- Operating Temperature : 0 Deg. C to plus 40 Deg. C
- Operating Humidity 90 percent RH or less (no condensation)
- Finish : Pre-coated steel plate, black, 30 percent gloss
- Dimensions : 420 (W) x 44.3 (H) x 325 (D) mm (16.54 inch x 1.84 inch x 12.81 inch)
- Weight : 3.8 kg (8.38 lb)
- Optional Accessories : Wall mounting bracket: YC-850
