TOA SV-200MA Surveillance Board for PA Network Control & System Integration
₹ 50,740.00 GST included
Designed to be Built in the VM-2120/ 2240 Amplifiers. Permits Monitoring of Individual Speaker Line. Speaker Lines are Automatically Monitored at Set time Intervals.
In stock
Description

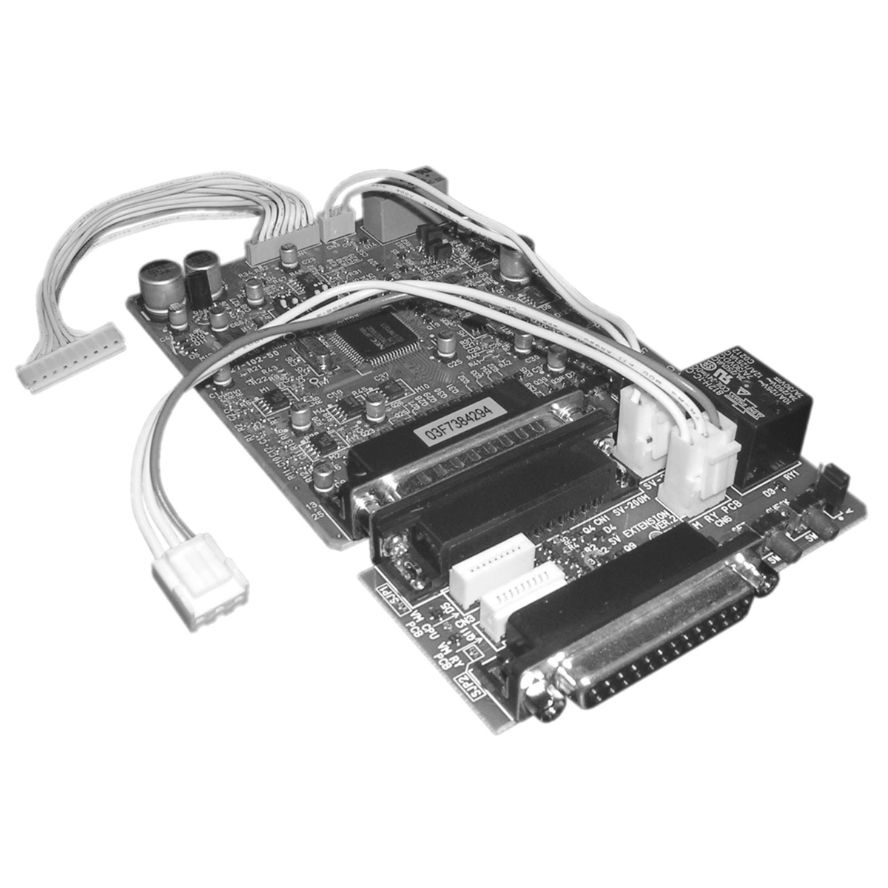

TOA Surveillance board, SV-200MA is Designed to be Built in the VM-2120/-2240 Amplifiers, the SV-200MA Permits Monitoring of individual Speaker line or Power Amplifier failures for Status Indication.
Features
- Designed to be Built in the VM-2120/ 2240 Amplifiers
- Permits Monitoring of Individual Speaker Line
- Speaker Lines are Automatically Monitored at Set time Intervals
Specifications
- Brand : TOA
- Power Source : 24 V DC
- Current Consumption : 120 mA
- Failure Detection : Power Amplifier failure: 20 kHz pilot tone detection, Speaker line failure: 40 Hz impedance detection (Detectable minimu load: 5 W)
- Set Time : 10 - 60 min, at 10 min intervals
- Operating Temperature 0 Deg. C to plus 50 Deg. C
- Operating Humidity : 90 percent RH or less (must be free from dew condition)
- Dimensions : 90 (W) x 20.6 (H) x 157 (D) mm
- Weight : 140 g
- Included Accessories : Flat cable x 2
