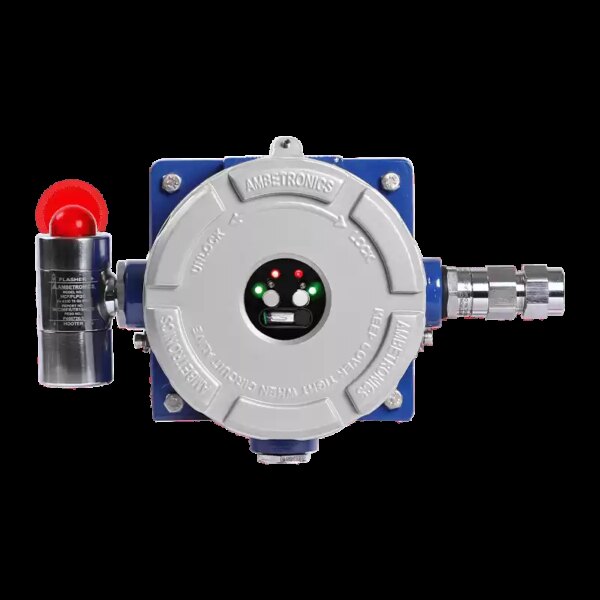

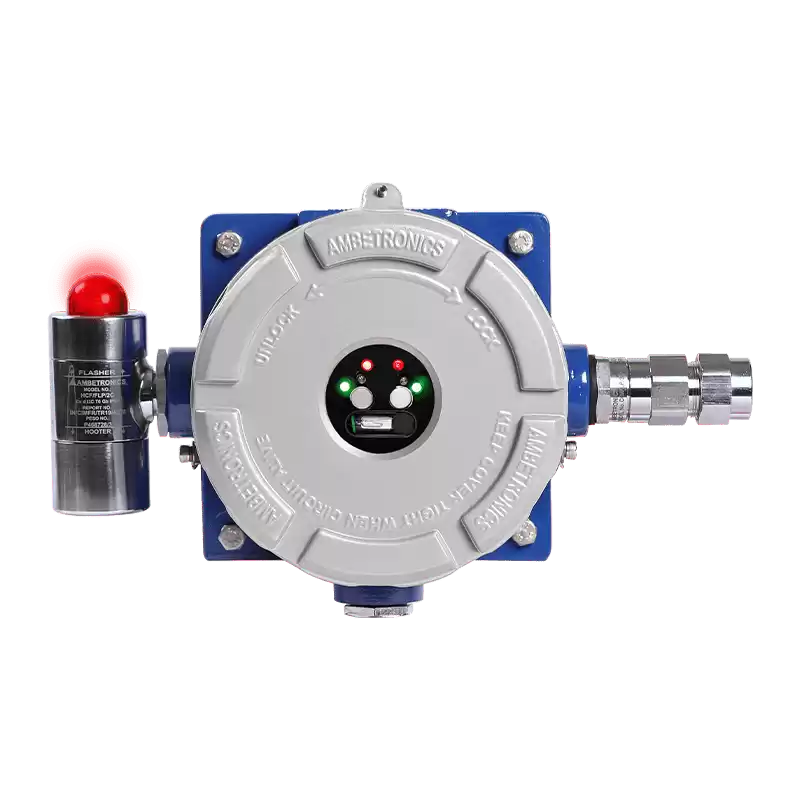

Ambetronics Double IR / Single UV Flame Detector

Name: Ambetronics Double IR / Single UV Flame Detector
SKU: FSIN00002190
Price: 97704.00 INR
Availability: InStock

See all products from ambetronics

₹ 97,704.00 GST included

Multi-Spectral Sensitivity. Dual Spectrum Design. Sensitivity Selection. Dynamic Range. High Sensitivity and Fast Response. Multiple Output Options. User Programmable. Built-in self-test (BIT) Mobile alerts. IoT connectivity.

In stock

Compare

Product Code : FSIN00002190 Brand: Ambetronics Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Ambetronics Double IR / Single UV Flame Detector is a cutting-edge device designed for fire detection in various industrial applications. Its multi-spectral sensitivity, utilizing UV and IR sensors, ensures efficient detection of fires with a dual spectrum design for long-distance coverage and high immunity to false alarms. The detector offers sensitivity selection, allowing for zone-specific settings to prevent crossover detection. With high sensitivity and a rapid response time of less than 5 seconds, this detector can identify small and large flames over significant distances. It features multiple output options, including relays, 0-20mA, and 0-10V, and supports HART protocol for configuration. The device is user-programmable via Bluetooth, HART, or RS-485. In terms of approvals and compliance, the detector is certified for flameproof environments and adheres to relevant standards. It finds applications in diverse settings such as refineries, power plants, chemical plants, tunnels, storage tanks, engine rooms, aircraft hangars, military and marine applications, and more.

Features

Multi-Spectral Sensitivity
Dual Spectrum Design
Sensitivity Selection
Dynamic Range
High Sensitivity and Fast Response
Multiple Output Options
User Programmable
Built-in self-test (BIT) Mobile alerts
IoT connectivity.

Specifications

Brand : Ambetronics
Spectral Response : UV Band : 185nm to 260nm, Two IR Bands : 3000nm to 5000nm
Detection Range : n-Heptane: 88ft (27m), Kerosene: 82ft (25m), Diesel Fuel: 82ft (25m), Methanol: 66ft (20m), Gasoline: 82ft (25m)
Response Time: Typically less than 5 seconds (Depending on Flame Size & Sensitivity).
Field of View: 90 Degree Horizontal, 90 Degree Vertical.
Adjustable Time Delay : Up to 30 seconds.
Adjustable Sensitivity : Low, Medium, and High settings.
Power Supply : 18 to 36 VDC, typically 24VDC. Power consumption less than 3W
