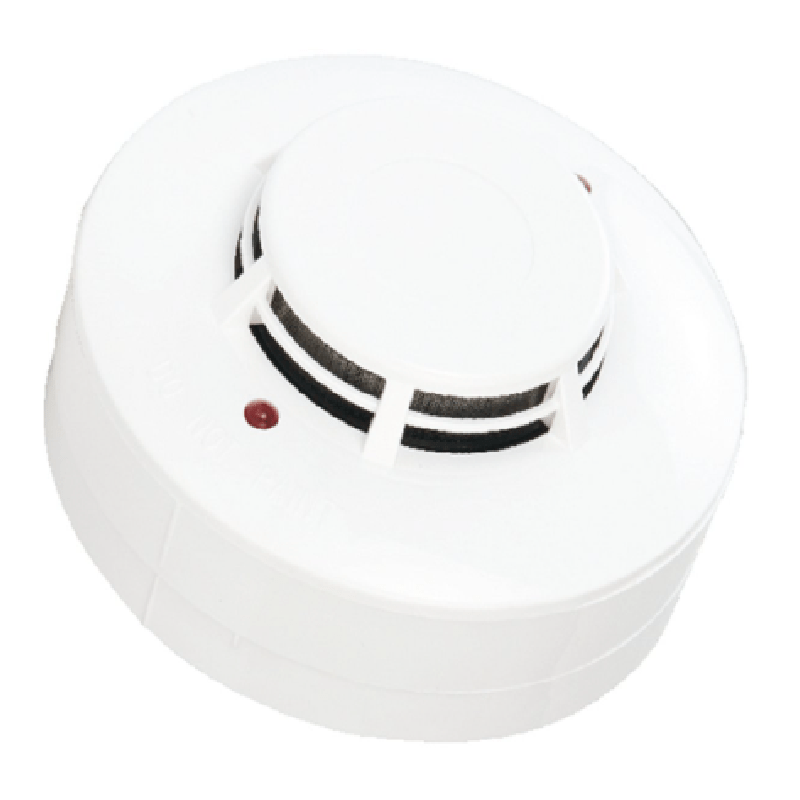

RE317DHL Heat Detector-ravel Make
See all products from ravel₹ 2,360.00 GST included
Heat Detector-ravel Make Heat Detectors Provide high quality, reliability, and the ultimate in design and decor. The low silhouette and pure white finish blend with most ceiling styles to provide an inconspicuous unit.
Description
Heat Detector-ravel Make Heat Detectors Provide high quality, reliability, and the ultimate in design and decor. The low silhouette and pure white finish blend with most ceiling styles to provide an inconspicuous unit.Heat Detectors are most suitable for environments where rapid fire development can be expected. when selecting the location on the ceiling for the heat detector, do not locate it in the Detect path of hot or cold airflow.
Features
- UL listed.
- Dual LED’s for 360° visibility.
- Polarity free wiring
- Advanced detection
- Easy installation and maintenance.
- Sleek low-profile housing design.
- Regular 100mm base.
Specifications
- Brand: Ravel
- Color White
- Operating Voltage : 9 ~ 33V DC
- Reset Voltage : less than 1V
- Start-Up Current : 120 μA.
- Alarm Current : 40 mA (Max)
- Remote Output : 15mA maximum open collector
- Thermal Rating : 59 °C (138 °F)
- Rate of Raise of Temp : 11.1°C / min (20°F/min)
- Operating Temperature : -10 °C to 37.8 °C
- Humidity : 0 – 95% RH, non-condensing
