Ambetronics Single IR / Single UV Flame Detector
₹ 92,276.00 GST included
Multi-Spectral Sensitivity. Line of Sight Visual Range. IR Spectrum Design. Sensitivity Selection. High Sensitivity and Fast Response. High Dynamic Range. Multiple Output Options. User Programmable.
In stock
Product Code : FSIN00002191
Brand: Ambetronics
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

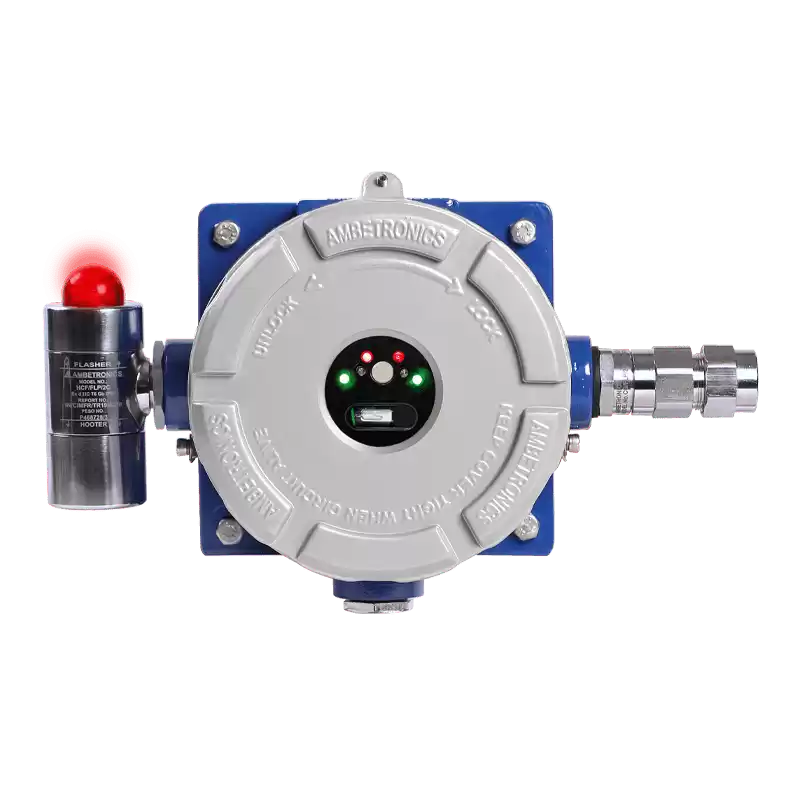

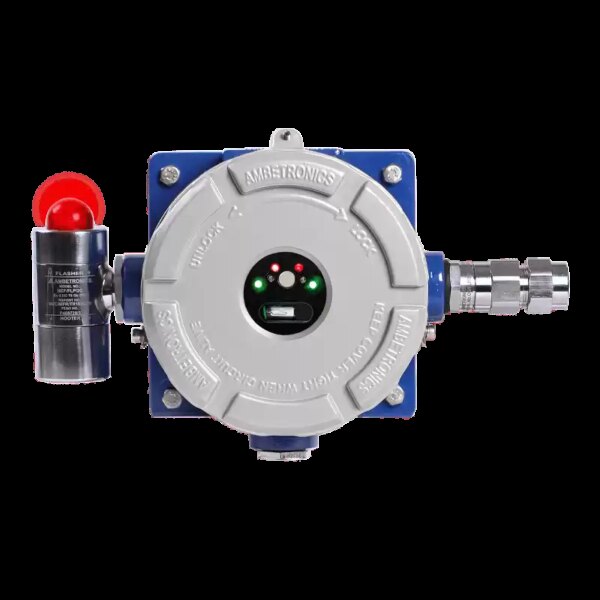

Ambetronics Single IR / Single UV Flame Detector is an advanced fire detection system designed for diverse industrial applications, ensuring rapid and accurate flame detection. Equipped with UV and IR sensors, it utilizes multi-spectral sensitivity for precise fire detection. The detector offers a line of sight visual range, employing an IR spectrum design for long-distance detection and increased immunity to false alarms. With sensitivity selection options and high dynamic range, it effectively detects small and large flames over various distances. Featuring multiple output choices such as relays, 0-20mA, 0-10V, and optional HART protocol, the detector provides flexibility and compatibility. Users can conveniently configure the device via Bluetooth, HART, or RS-485. Optional features include a heat detector extension, built-in self-test, and mobile alerts. The detector also supports IoT connectivity.
Features
- Multi-Spectral Sensitivity
- Line of Sight Visual Range
- IR Spectrum Design
- Sensitivity Selection
- High Sensitivity and Fast Response
- High Dynamic Range
- Multiple Output Options
- User Programmable
Specifications
- Brand : Ambetronics
- Spectral Response : UV Band: 185nm to 260nm, Single IR Band: 3000nm to 5000nm
- Detection Range for Various Fuels : n-Heptane: 88ft (27m) Kerosene: 82ft (25m) Diesel Fuel: 82ft (25m) Methanol: 66ft (20m) Gasoline: 82ft (25m)
- Performance: Response Time: Less than 5 seconds Field of View: 90 Deg Horizontal, 90Deg Vertical Adjustable Time Delay: Up to 30 seconds Adjustable Sensitivity: Low, Medium, and High Built-In Self-Check Test (BIT)
- Electrical: Supply Voltage: 18 to 36 VDC, typically 24VDC Power Consumption: Less than 3W
- Environmental: Operating Temperature: Minus 15DegC to Plus 50Deg C Storage Temperature: Minus 20Deg C to Plus 85Deg C Humidity: Less than 95Percent Non-Condensing
