Simplex 49AV-WRF Hooter cum Strobe
₹ 5,782.00 GST included
Next product
Simplex 4100-3109 IDNet2 250 points 2 Loop Interface Module
₹ 29,913.00 GST included
Description

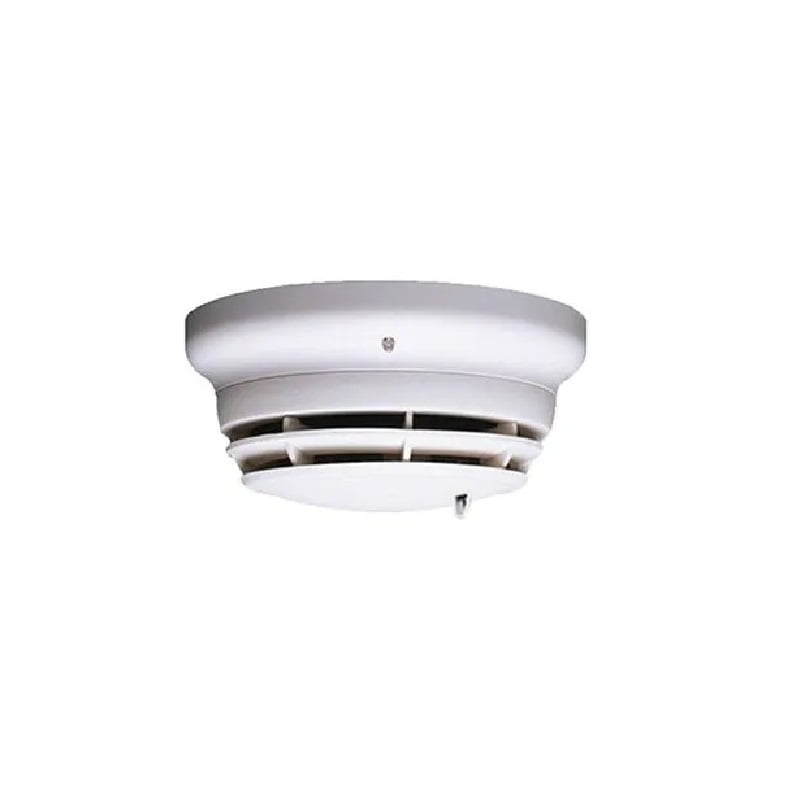

Simplex Multi-Sensor Detector with Base combines the established performances of a TrueAlarm photoelectric smoke sensor with a fast-acting and accurate TrueAlarm thermal sensor to provide both features in a single sensor/base assembly.
Features
- TrueSense detection, a correlation of smoke activity and thermal activity providing intelligent fire detection earlier than with either activity alone
- Smoke sensor louver design that directs air flow to chamber enhancing smoke capture
- Smoke activity accurately monitored by TrueAlarm photoelectric sensing technology
- Thermal activity accurately monitored by TrueAlarm thermistor sensing technology
- Functional and architecturally styled enclosures for ceiling or wall mounting
- Designed for EMI compatibility
- Built-in magnetic test feature
Specifications
- Product: Multi-Sensor Detector
- Brand: Simplex
- Model: 4098-9754
- Housing Color: Frost White
- Smoke Sensor Air Velocity Range: 0-4000 ft/min (0-1220 m/min)
- Thermal Sensor Operation (selected at control panel): Fixed alarm temperature setting of 135° F (57.2° C), and/or rate-of-rise temperature alarm at 15° F (8.3° C) or 20° F (11.1° C), also selectable as utility monitoring operation from 32° F to 122° F (0° C to 50° C)
- Communications and Sensor Supervisory Power: IDNet communications, 1 address per base
