ASES Ten Zone microprocessor based Fire alarm Panel Model No.PR10Z
₹ 15,399.00 GST included

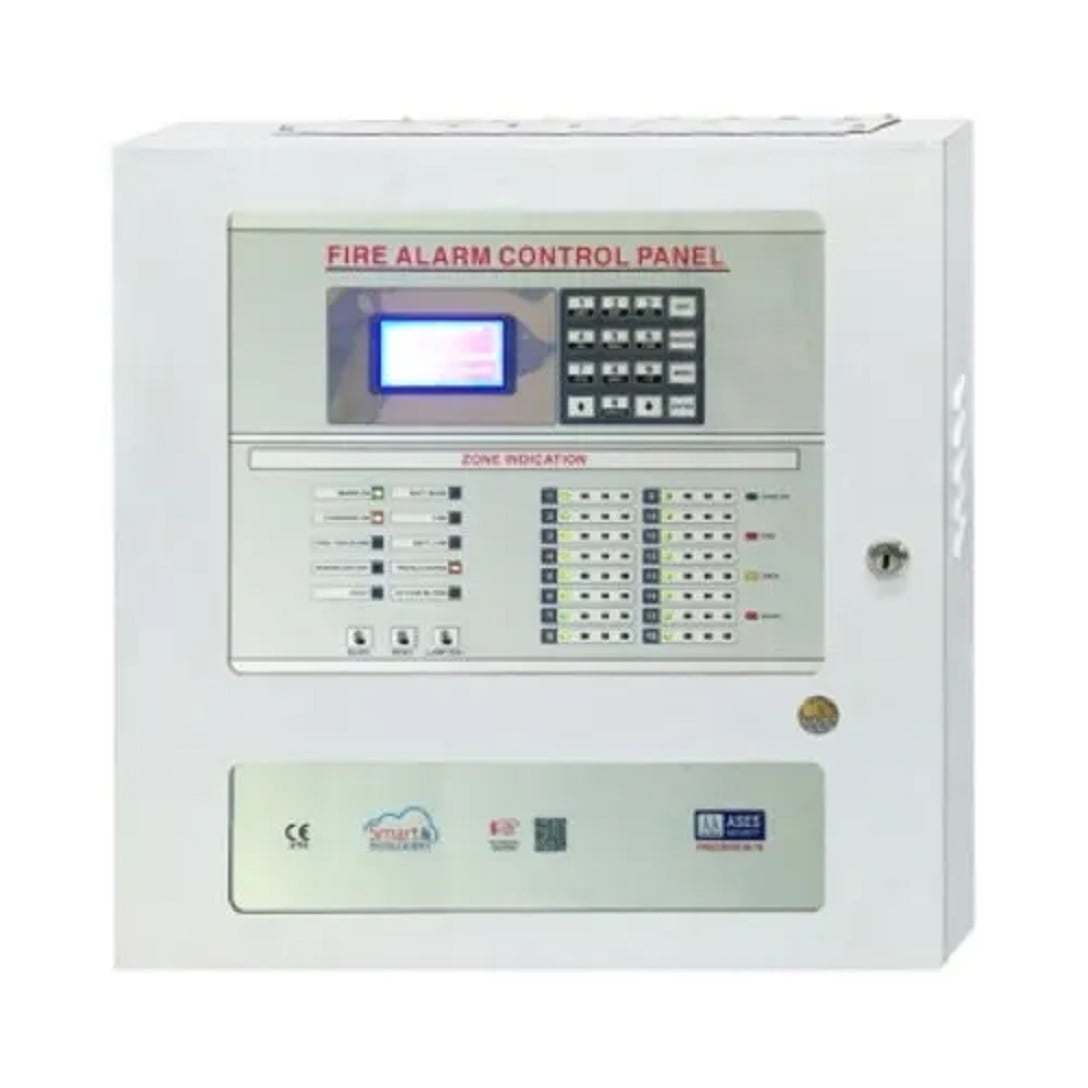

ASES Eight Zone microprocessor based Conventional Fire Alarm Panel, LCD and LED both Model No. IR8Z
₹ 10,325.00 GST included
Menu Based Operations. Expandable upto 72 Zones. 128×64 Graphical Display. 4×4 Matrix Keypad. Inbuilt Real Time Clock. Data Logging upto 500 Events. All Zones and Hooter can be enable/disable through Keypad. Auto Calibration feature. Low and High Voltage alert on Display. Extra potential free contact for Fire & Fault. Trickle & Fast Charging Facility.
In stock
Description
ASES Eight Zone microprocessor based Conventional Fire Alarm Panel, Model No. IR2Z is 16X2 character display Fire Alarm Panel, zone wise fault indication isolation LCD and LED both available, inbuilt battery charger, provision to attach auto dialer, reset silence lamp test, potential free contact, mains system charger indication facility, confirms to IS 2189, SQTL & CE approved.
Features
- Menu Based Operations
- Expandable upto 72 Zones
- 128x64 Graphical Display
- 4x4 Matrix Keypad
- Inbuilt Real Time Clock
- Data Logging upto 500 Events
- All Zones and Hooter can be enable/disable through Keypad
- Auto Calibration feature
- Low and High Voltage alert on Display
- Extra potential free contact for Fire & Fault
Specifications
- Power Supply : 220VAC, 50 Hz 10%
- Standby Power : 24V D.C - 2
- Quiescent Current : 15-35mA
- Charging Circuit : Charging Voltage 23 V to 24 V
- Dimensions : 495 x 496 x 200 mm
- Color : White
- Model No. : IR-8Z
- Brand : ASES
