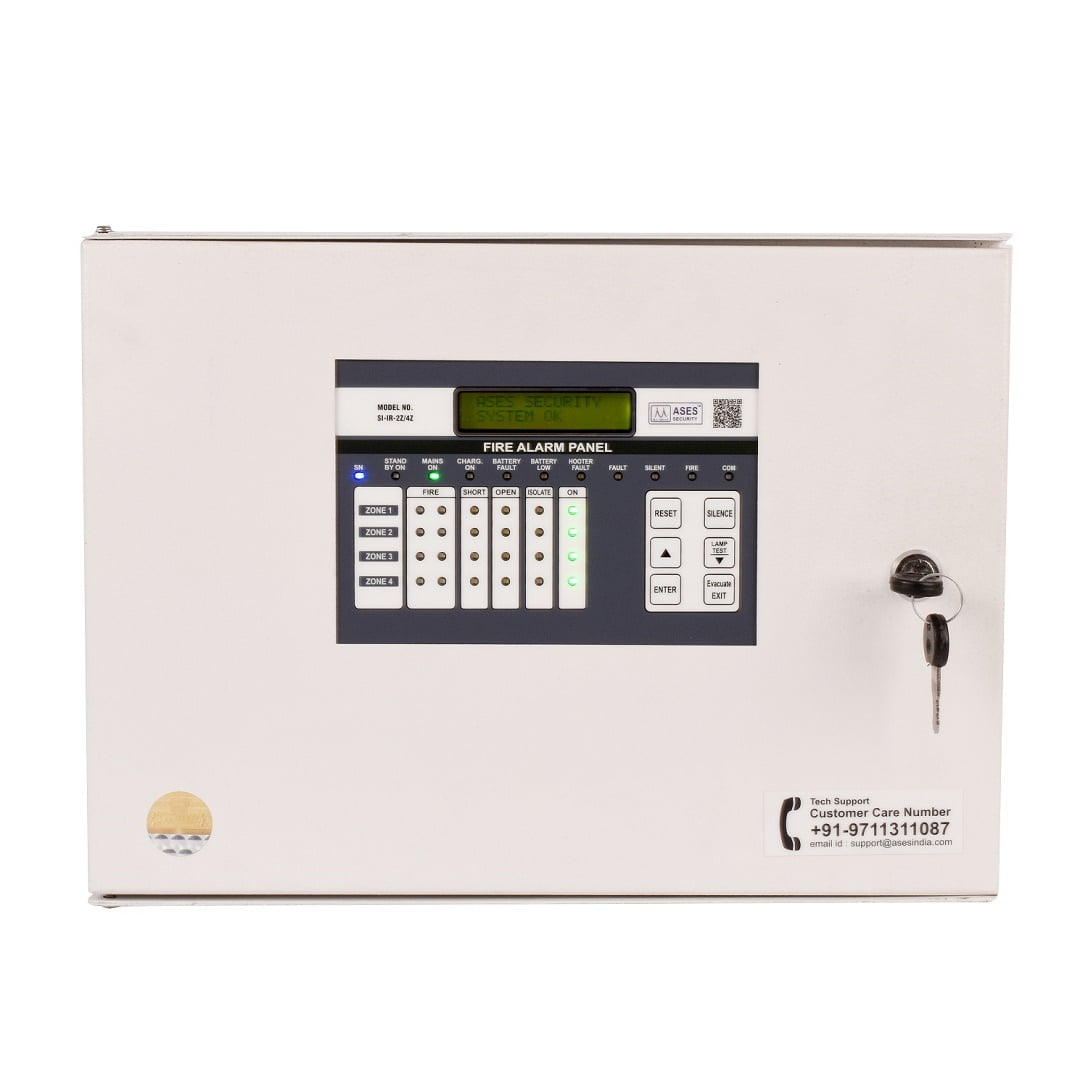

ASES Four Zone microprocessor based Conventional Fire Alarm Panel Model No. IR4Z .
₹ 5,256.90 GST included
Standalone system. With a 16×2 LCD character. 4 zones detection circuit. Fire & Fault potential-free contacts. Common Hooter. And battery Fault Indication. Inbuilt Battery Charger.
In stock
Description
ASES Four Zone microprocessor based Conventional Fire Alarm Panel, Model No. IR4Z is 16X2 character display Fire Alarm Panel, zone wise fault indication isolation LCD and LED both available, inbuilt battery charger, provision to attach auto dialer, reset silence lamp test, potential free contact, mains system charger indication facility, confirms to IS 2189, SQTL & CE approved.
Features
- Standalone system
- With a 16x2 LCD character
- 4 zones detection circuit
- Fire & Fault potential-free contacts
- Common Hooter
- Battery Fault Indication.
- Inbuilt Battery Charger
Specifications
- Power Supply : 120-220VAC, 50 Hz
- Standby Power : 24V D.C - 2 Nos. of 12v, 7Ah Sealed Lead acid battry
- Quiescent Current : 55mA
- Charging Circuit : Charging Voltage 28.2V, plus or minus 0.5V Charging Current 0.5 A Max.
- Dimensions : 350 x 255 x 105 mm
- Color : White
- Model No. : IR-4Z
- Brand : ASES
