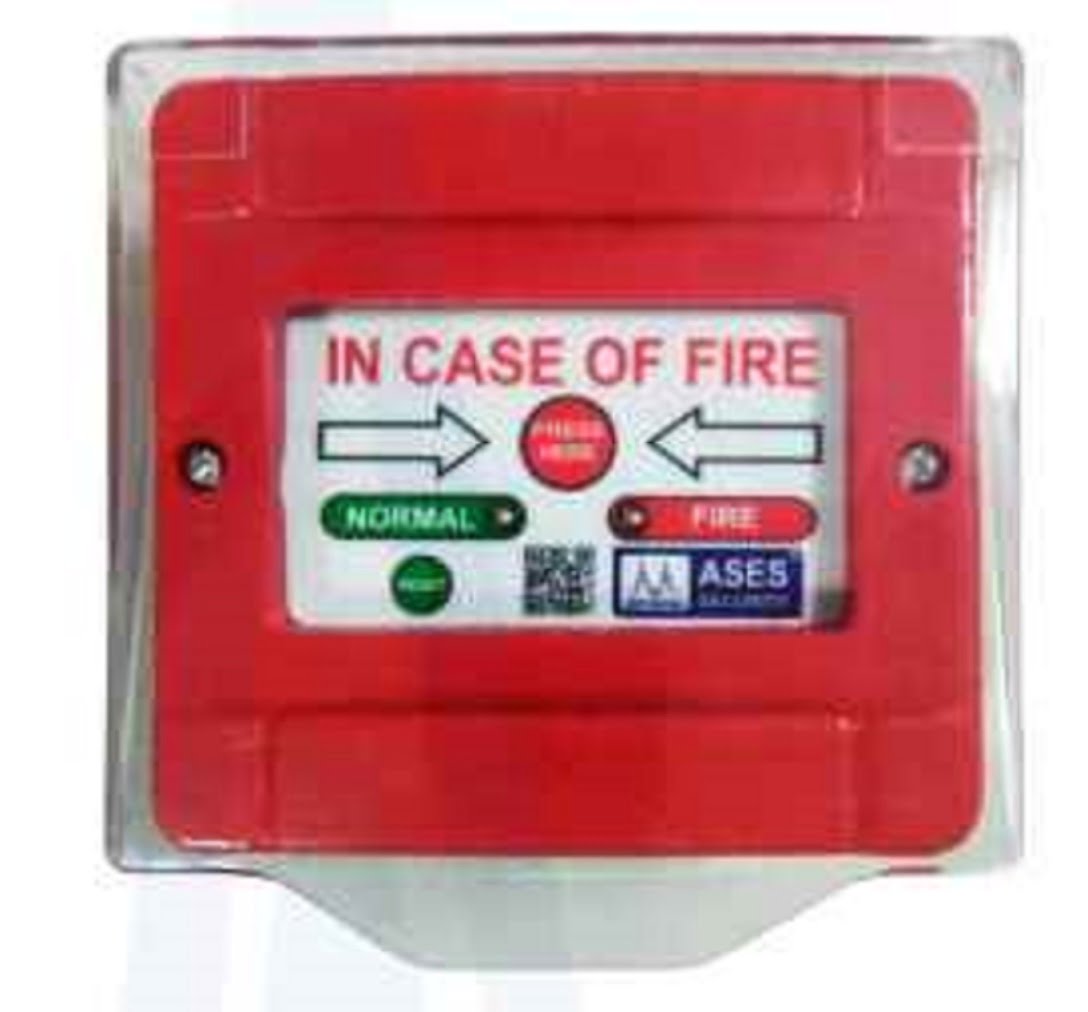

ASES Manual Call Box, resetable type, duel LED, transperant flip cover for. Model No. BGABS2
₹ 354.00 GST included
Re-settable operation. Compatibility with any make conventional fire alarm system. Wall mount facility. At normal Green-LED blinking duration of 14 sec. Steady glow of Red LED indicates the alarm condition. Suitable for malls, restaurant,residential etc.
In stock
Description
ASES Manual Call Box, resetable type, duel LED, transperant flip cover for. Model No. BGABS2 is a call point designed to provide a manual alarm interface to any conventional fire alarm control panel. ASES call point is having two different switches – one for alarm activation and another for alarm Reset. Bicolour LED indication shows the stats of the call point – GREEN for healthy condition and RED for fire condition. All indoor call point products also help preserve the intergrity of the overall system as illegal removal of the product will result in the call operating and the system going into fault condition. All the MCP comes with a factory fitted back box for surface or semi-flish mounting on the wall.
Features
- Re-settable operation
- Compatibility with any make conventional fire alarm system
- Wall mount facility
- At normal Green-LED blinking duration of 14 sec
- Steady glow of Red LED indicates the alarm condition
- Suitable for malls, restaurant,residential etc.
Specifications
- Operating voltage : 24V DC
- Current Consumption (Normal/fire) : 150 mA/ 60mA at 24 VDC
- Application Temp range : 0 Deg C to Plus 60 Deg C
- Humidity Range : 5percent-95percent relative humidity (Non Condensing)
- Housing : ABS
- Weight : 80 Gm
- Dimensions (mm) : 105 x 105 x 57 (W x H x D
- Color : Red
- Model : BG-ABS-2
- Brand : ASES
