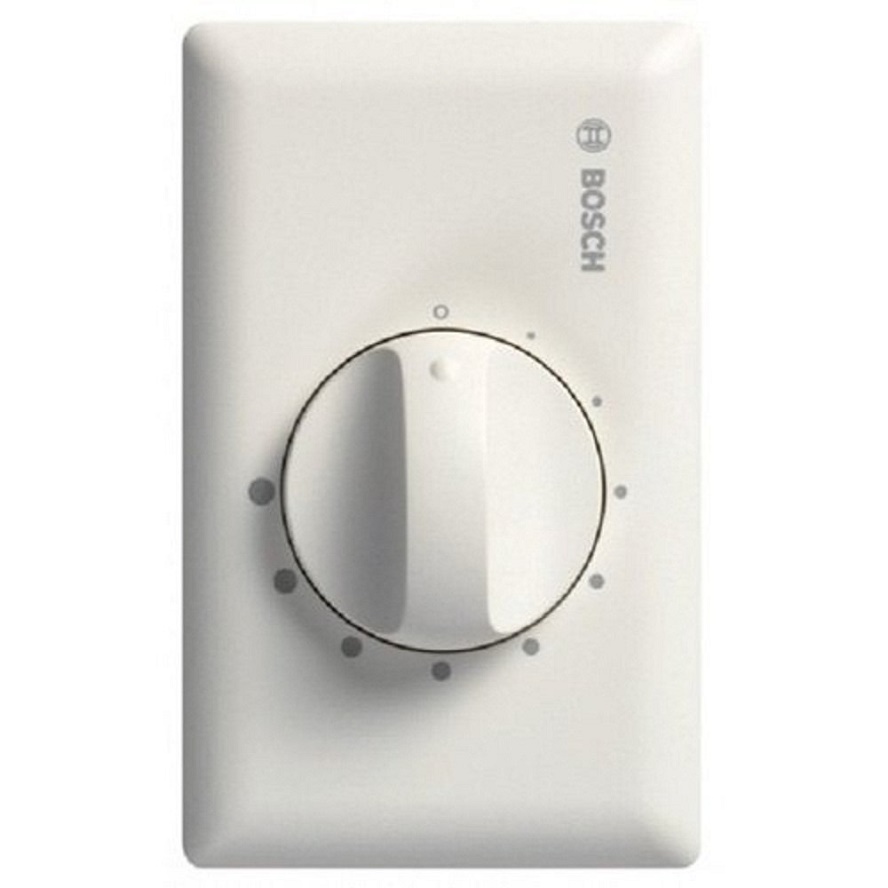

Bosch LM1-VC12P-IN Volume Control 12 W (portrait) (MOQ – 2 Pcs)
₹ 1,652.00 GST included
12 W and 36 W versions. Available in Portrait and Landscape design. Suitable for 3-wire and 4-wire override systems. Built-in 24 VDC override relay. Robust design.
In stock
Description
Bosch Volume Control 12 W (portrait) are often used for both announcements and background music distribution. Volume controls can be used to adjust the sound level locally. In the event of an (emergency) announcement, the built-in relay ensures that the message is broadcast at a preset level, independent of the local volume setting. The volume controls are suitable for 3-wire and 4-wire override systems. The volume controls are available in 12 W and 36 W and available in portrait (vertical) and landscape (horizontal) design. The 12 W volume control features 5 attenuation steps of -3 dB and an off position. The 36 W volume control features 8 attenuation steps of -3 dB and an off position. The intuitive graphics around the knob clearly shows the attenuator steps and off position.
Features
- 12 W and 36 W versions
- Available in Portrait and Landscape design
- Suitable for 3-wire and 4-wire override systems
- Built-in 24 VDC override relay
- Robust design
Specifications
- Brand : Bosch Paco
- Electrical : Rated power 12 W
- Input voltage : 100 V
- Connection terminal : 8-way screw terminal
- Dimensions (W x H x D) : 114 x 70 x 32 mm
- Weight : 257 g
- Color : White (RAL 9010)
