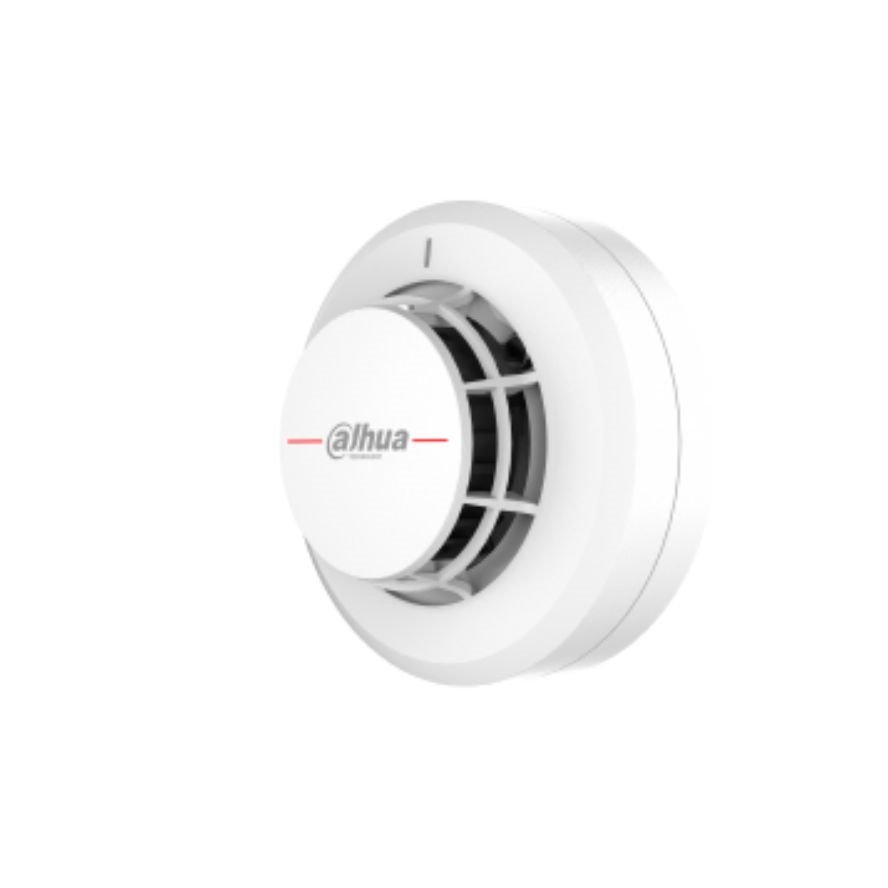

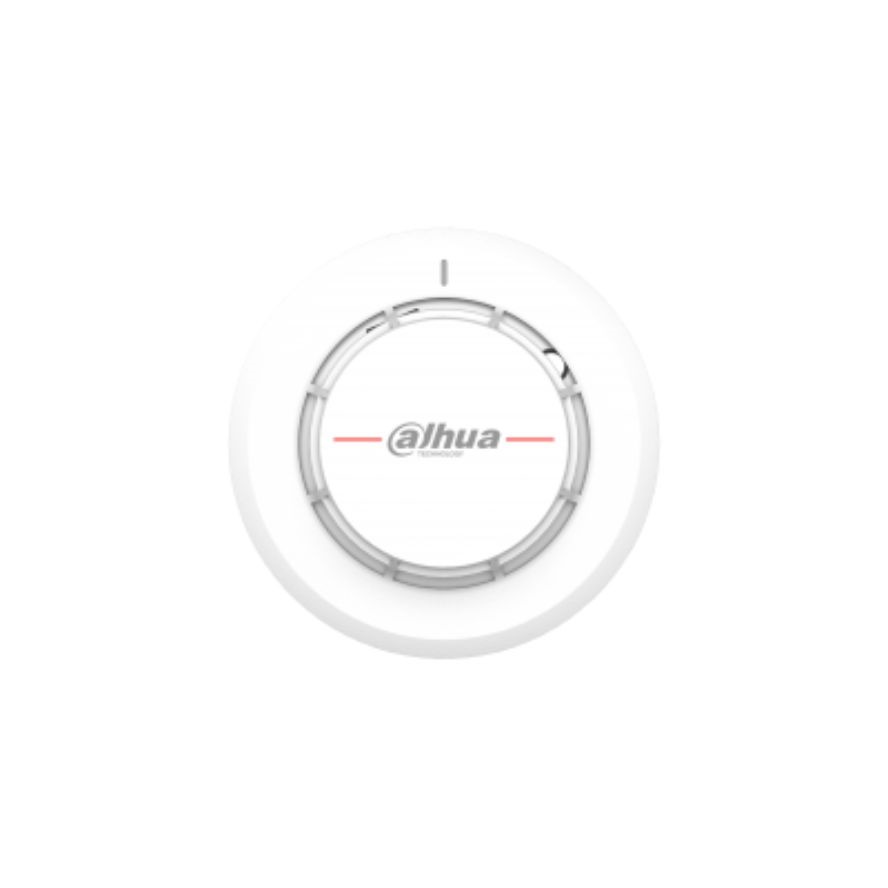

Dahua Conventional Smoke Detector, DHI-HY-C134 (MOQ-4Pcs)
₹ 767.00 GST included
4W-B Smoke Detector, Compatible with remote indicator. The Backlight compensation intelligent algorithm allows the Smoke Detector to Automatically adjust the alarm threshold based on maze contamination levels, extending cleaning cycles and simplifying maintenance. Non-loosening Screws on base terminal for easy Installation. Contacts material is highly acid-resistant and Rust-resistant. Designed in accordance with EN54-7 standard.
In stock
Description
Dahua Conventional Smoke Detector, DHI-HY-C134 is a 4W-B Non-addressable Photoelectric Smoke Detector that Operates on a Polarity-free two-wire power supply. It Features a Dual-emitter and Single-receiver Labyrinth design, which includes a Labyrinth contamination compensation Function.
Features
- 4W-B Smoke Detector, Compatible with remote indicator
- The Backlight compensation intelligent algorithm allows the Smoke Detector to Automatically adjust the alarm threshold based on maze contamination levels, extending cleaning cycles and simplifying maintenance
- Non-loosening Screws on base terminal for easy Installation
- Contacts material is highly acid-resistant and Rust-resistant
- Designed in accordance with EN54-7 standard
Specifications
- Brand : Daua
- Surveillance Area : For installation heights below 4m, the coverage area is 150 m2, For installation heights between 4m and 12m, the coverage area is 80 m2
- Remote Indicator : Support
- Working Principle : Smoke Detection
- Alarm Mode : Indicator light Alarm
- Operating Voltage : DC 24V
- Operating Current : Static current: Less or Equal to 60μA, Alarm current: Less or Equal to 25mA
- Operating Temperature : Minus 10 Deg.C to Plus 50 Deg.C
- Operating Humidity : Less or Equal to 95 Percent RH (No Condensation)
- Dimensions (with base) : 100 mm × 46.3 mm ( 3.94 inch × 1.82 inch)
- Weight : (with base) 96 g (0.21 lb)
