Dahua Conventional Smoke Detector, DHI-HY-C134 (MOQ-4Pcs)
₹ 767.00 GST included

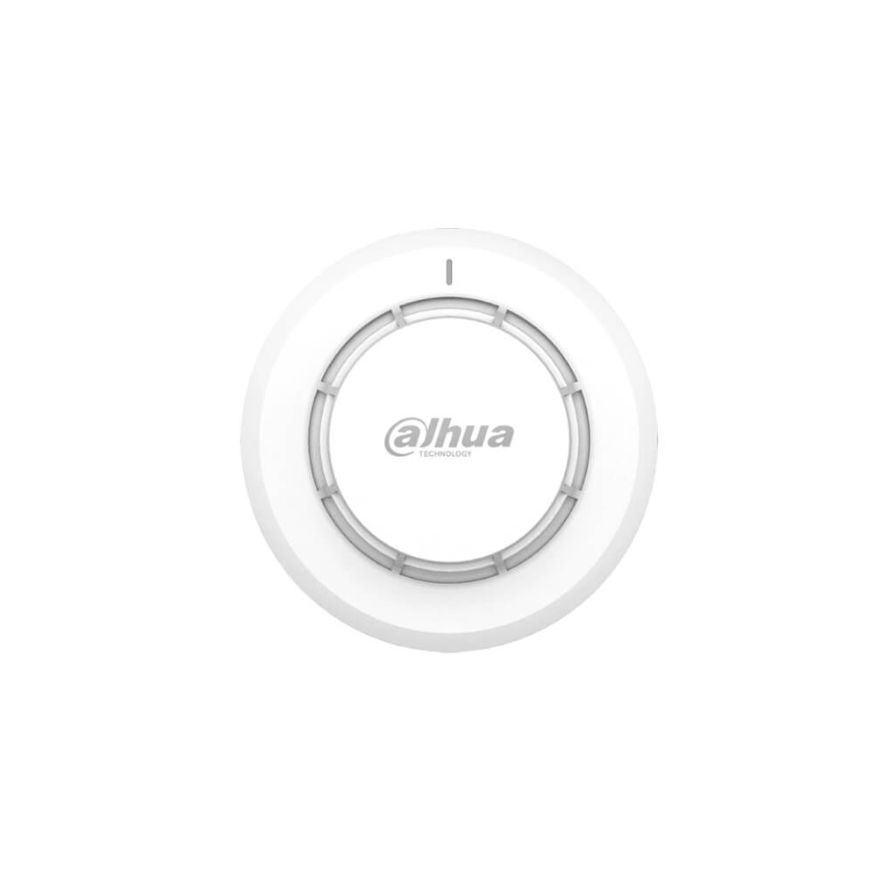

Dahua Conventonal Heat Detector (RI Support), DHI-HY-C136 (MOQ-3Pcs)
₹ 826.00 GST included
4W-B Smoke Detector, Compatible with remote indicator. Non-loosening Screws on base terminal for easy Installation. Contacts material is highly acid-resistant and Rust-resistant. Designed in accordance with EN54-5 standard.
In stock
Description
Dahua Conventonal Heat Detector (RI Support), DHI-HY-C136 is a 4W-B Non-addressable Heat Detector that operates on a Polarity-free two-wire power supply. It primarily utilizes a Thermal sensing element to detect fires. During the Initial stage of a fire, Significant Heat is released, causing a Rapid increase in the surrounding Temperature. The Thermal sensing element in the Detector undergoes a Physical change, responding to abnormal temperature, rate of temperature change, and temperature differentials. This Transforms the temperature signal into an Electrical signal, Triggering an alarm.
Features
- 4W-B Smoke Detector, Compatible with remote indicator
- Non-loosening Screws on base terminal for easy Installation
- Contacts material is highly acid-resistant and Rust-resistant
- Designed in accordance with EN54-7 standard
Specifications
- Brand : Daua
- Protection Area : For installation heights below 4m, the coverage area is 150 m2, For installation heights between 4m and 12m, the coverage area is 80 m2
- Remote Indicator : Support
- Working Principle : Heat Detection
- Sensor Class : A2R
- Fixed Detection Threshold : 62 Deg.C plus or minus 3 Deg. C
- Dynamic Detection : 1 to 30 K min
- Alarm Mode : Indicator light alarm
- Operating : Voltage DC 24V
- Operating Temperature : Minus 10 Deg.C to Plus 50 Deg.C
- Operating Humidity : Less or Equal to 95 Percent RH (No Condensation)
