Dahua Conventional Multi Sensor Detector (Without RI Support), DHI-HY-C135 (MOQ-3Pcs)
₹ 944.00 GST included
3W-B Multi-sensor Smoke and Heat Detector with Two-wire and Polarity-free power supply. Reliable communication: Built-in microprocessor, Stable performance. Ultra-low power consumption: Ultra-low monitoring current and Alarm Current. High-performance sensor Featuring a split-spectrum Optical Smoke Detector and a Sensitive Thermistor. Designed in accordance with EN54-5 and EN54-7 standards.
In stock
Description

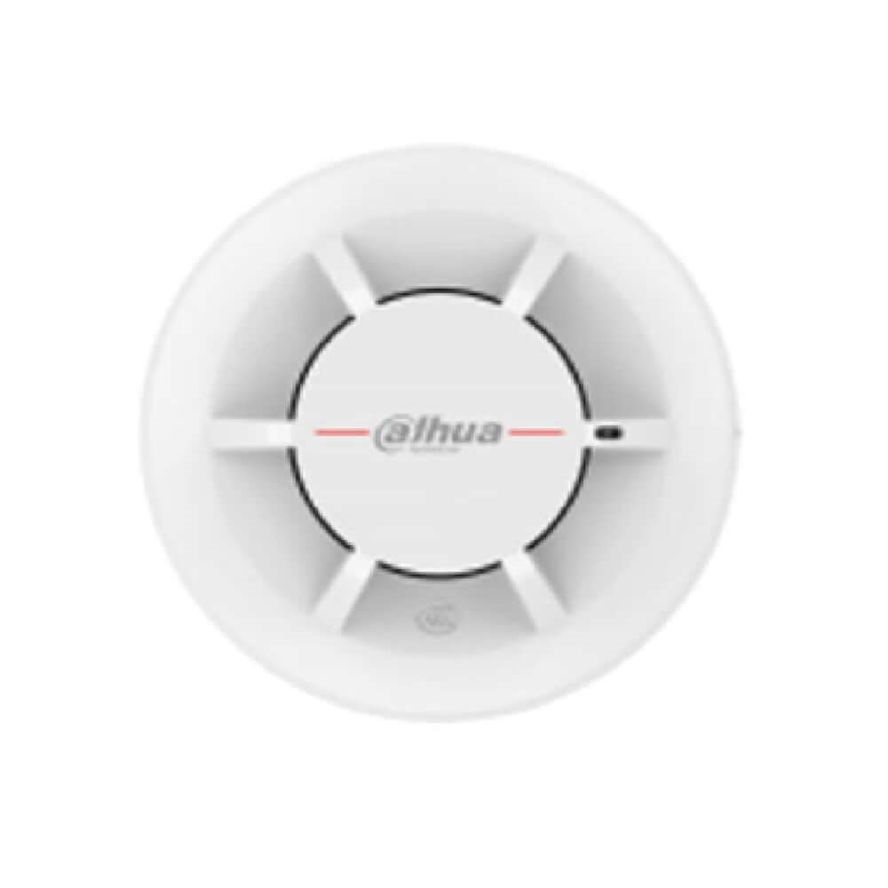

Dahua Conventional Multi Sensor Detector (Without RI Support), DHI-HY-C135 is a Complementary Component of the Conventional Fire Alarm System. It combines an Optical Smoke Sensor with a Thermistor Temperature Sensor, utilizing an Intelligent algorithm to Analyze both Smoke and
Ambient temperature in order to activate Alarms.
Features
- 3W-B Multi-sensor Smoke and Heat Detector with Two-wire and Polarity-free power supply
- Reliable communication: Built-in microprocessor, Stable performance
- Ultra-low power consumption: Ultra-low monitoring current and Alarm Current
- High-performance sensor Featuring a split-spectrum Optical Smoke Detector and a Sensitive Thermistor
- Designed in accordance with EN54-5 and EN54-7 standards
Specifications
- Brand : Daua
- Power : DC24V
- Current : Monitoring current - Less or equal to 70μA, Alarm current: Less or equal to 15mA
- Indicator : Red LED Polling: Flash every 6 seconds, Alarm: Remain lit Fault: Flash every 2 seconds
- Wiring : Two-wire, polarity-free
- Operating Temperature : Minus 10 Deg.C to Plus 55 Deg.C
- Operating Humidity : Less or Equal to 95 Percent RH (No Condensation)
- Color : White
- Dimensions (with base) : 100 mm × 68.7 mm ( 3.94 inch × 2.70 inch)
- Weight (with base) : 110.0 g
- Compliance Standard : EN54-5, EN54-7
