Description

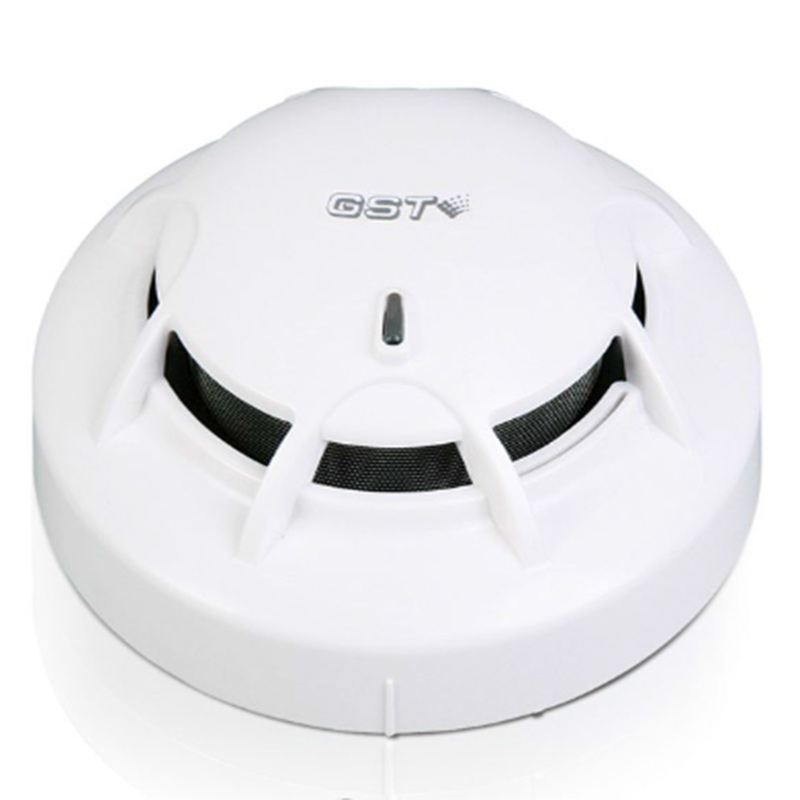

DI-9102E Intelligent Photoelectric Smoke Detector is addressable type fire detection device, build up fire alarm system together with fire alarm panel and other alarm devices. By light-scattering technology, the detector is suitable for hotel, restaurant, office building, school, bank, warehouse, library, computer room, switch room, and etc.
Features
- Electrically addressed, can be modified by programmer
- Strong environmental adaptability due to drift compensation
- Self-diagnostic, reed switch test
- Dirty chamber checking
- Fire LED allows 360° viewing
- Possible to switch off polling LED
- Remote indicator output
- Removable innovative sensing chamber, easy for maintenance
- 2 levels sensitivities programmable (Level 1 certified)
Specifications
- Operating Voltage loop:- 24V (16V ~ 28V)
- Indicator:- Red. Flashes in polling, and illuminates in alarm
- Programming Method:- Electronically programming
- Code Range:- 1 ~ 242
- Wiring Level:- Non-polarized 2-core for loop. Polarized 2-core for remote indicator
- Environment Temperature:- -10°C ~ 50°C
- Sensitivity:- 2
- Relative Humidity:-Less than Equal to 95%, non condensing
- Material of Enclosure:- ABS
- Dimensions Diameter:- 100mm Height: 54.5mm (with base)
- Mounting Hole Distance:- 45mm ~ 75mm
- Ingress Protection Rating:- IP2X
- Weight :- 110g
- Standby Current:-Less than Equal to 0.8mA
- Alarm Current 1.8mA (without remote indicator) :-Less than Equal to 3.8mA (with remote indicator)
