GSTDI-9101E Addressable Intelligent Combined Heat Photoelectric Smoke Detector
₹ 2,478.00 GST included
Electrically addressed, can be modified by programmer Strong environmental adaptability due to drift
compensation Self-diagnostic Reed switch test Dirty chamber checking Fire LED allows 360° viewing Possible to switch off polling LED Remote indicator output 2 levels smoke sensitivities, level 1 complies with
EN 54-7 LPCB approved at EN 54-7 and EN 54-5
Description

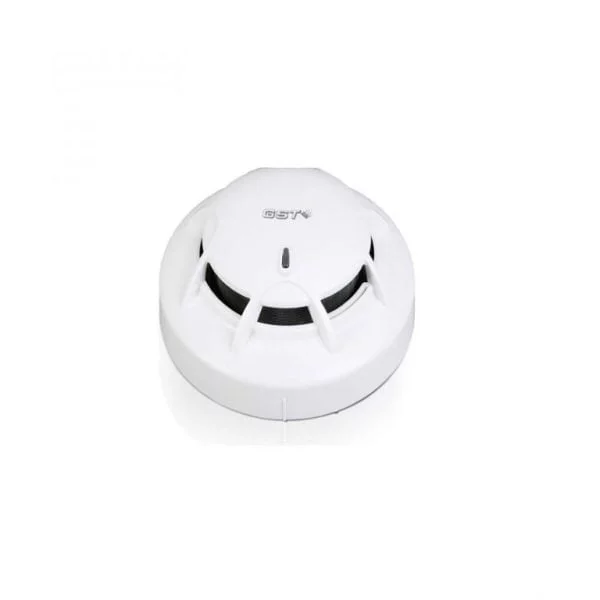

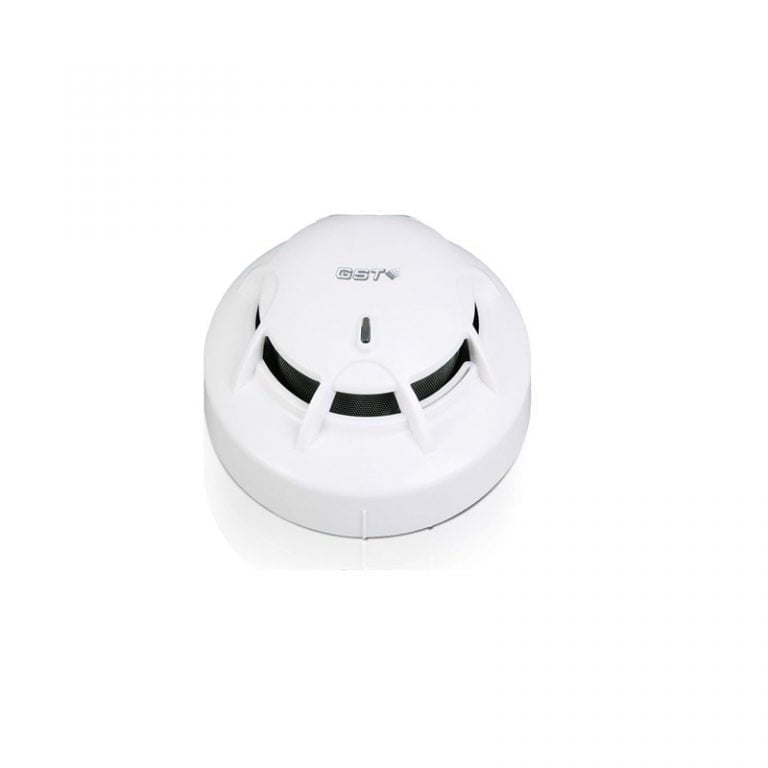

GSTDI-9101E Intelligent Combined Heat Photoelectric Smoke
Detector integrates photoelectric detection, fixed tempera ture and rate of rise detection technology. The smoke
sensor and heat sensor are integrated in mechanism and
circuitry structure, provide wide range of application, to
detect more types of fire conditions like black smoke with
small particles and alcohol flame. Electrically addressed, can be modified by programmer Strong environmental adaptability due to drift
compensation Self-diagnostic Reed switch test Dirty chamber checking Fire LED allows 360° viewing Possible to switch off polling LED Remote indicator output 2 levels smoke sensitivities, level 1 complies with
EN 54-7 LPCB approved at EN 54-7 and EN 54-5
Features
- Electrically addressed, can be modified by programmer
- Strong environmental adaptability due to drift compensation
- Self-diagnostic
- Reed switch test
- Dirty chamber checking
- Fire LED allows 360° viewing
- Possible to switch off polling LED
- Remote indicator output
- 2 levels smoke sensitivities, level 1 complies with EN 54-7
Specifications
- Operating Voltage : loop 24V (16V ~ 28V)
- Standby Current : ?0.8mA
- Alarm Current : ?1.8mA (without remote indicator) ? 3.8mA (with remote indicator)
- Indicator : Red. Flashes in polling, and illuminates in alarm
- Programming Method : Electronically programming
- Code Range : 1 ~ 242
- Wiring : Non-polarized 2-core for loop. Polarized 2-core for remote indicator.
- Sensitivity Level : 2
- Heat Detector Class : A2R
- Action Temperature : 62 °C
- Environment Temperature : 10°C ~ 50°C
- Relative Humidity : ?95%, non condensing
- Material of Enclosure : ABS
- Ingress Protection Rating : IP2X
- Dimensions : Diameter: 100mm Height: 54.5mm (with base)
- Mounting Hole Distance : 45mm ~ 75mm
- Weight : About 110g
