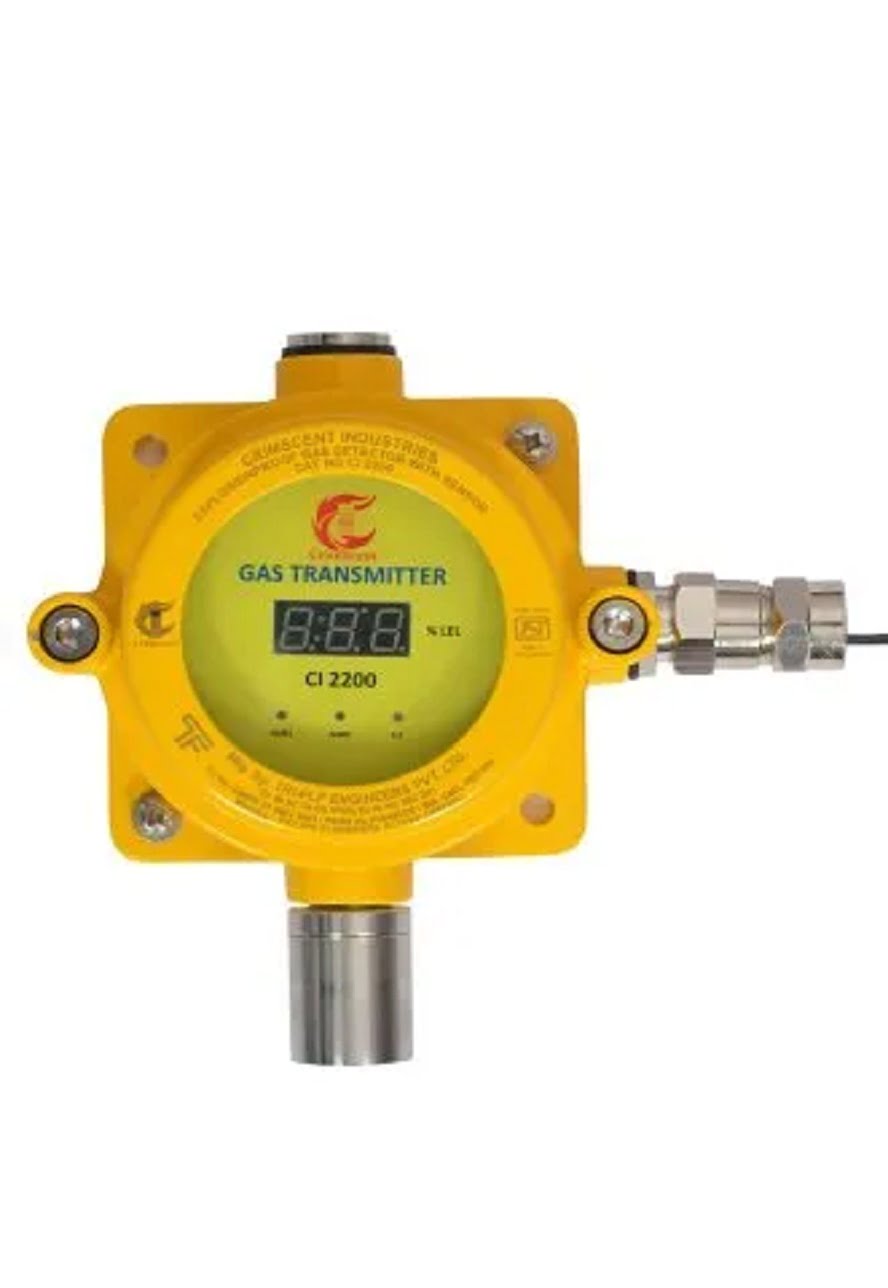

Crimscent Flame Proof HYDROGEN Gas Leak Detector-CI2200
₹ 20,532.00 GST included
PESO/CMRI Certified. Explosion Proof / Weather Proof. IP 66 Rating. Capable of detecting in PPM, Percentage LEL, Percentage V/V. Digital Display of Gas Concentration on LED Display. Analog Industry output 4-20mA. Digital Communication on RS485. 2 Configurable Potential free relays contacts. Span and Zero Calibration functions, make the detection more accurate and reliable. Fault Diagnosis & self testing Alarm LED’s with Relay. 2,3 or 4 wires technology.
In stock
Description
Crimscent Flame Proof HYDROGEN Gas Leak Detector-CI2200 is Advance Micro-processor technology with data display, fast response, high precision and good stability, our Gas Transmitters are suitable for detecting Oxygen, combustible and toxic gases in hazardous areas at industrial plant locatoin. The Products adopts the integrated design of sound and alarm which can effectively warn all kind of gas leakage hazards. This state of the art transmitter is carefully designed and manufactured with industrial grade components for reliability accuracy and long life.
Features
- PESO/CMRI Certified
- Explosion Proof / Weather Proof
- IP 66 Rating
- Capable of detecting in PPM, Percentage LEL, Percentage V/V
- Digital Display of Gas Concentration on LED Display
- Analog Industry output 4-20mA
- Digital Communication on RS485
- 2 Configurable Potential free relays contacts.
- Span and Zero Calibration functions, make the detection more accurate and reliable.
Specifications
- Brand : Crimscent
- Name of Gases Detected : Hydrogen (H2)
- Power Supply : 24 VDC/12VDC
- Display Type : Digital
- Sensor Type : Semiconductor
- Sound Level : <80 dB (In one meter)
- Accuracy : Plus or Minus 2 % of Full Scale
- Operating Voltage : 12 VDC-28VDC-Typically 24VDC
- Power Consumption : Less than 3 Watt
- Country of Origin : Made in India
