ASES ROR Heat Detector with base Model No. AS-602-HD
₹ 708.00 GST included
ASES Photoelectric Smoke Detector with base, duel LED Model No. AS-601-SD – (MOQ – 4 Pcs)
₹ 702.10 GST included
Power supply polarty free input. Infrared photoelectric sensor. Dustproof, mothproof, anti-light interference design. Stainless steel shield in chamber, anti-RF1 20V/m–1GFIz. MCU processing, eliminate false alarm. Network relay output I LED indicating alarm. SMT manufacture technology, high stability.
Out of stock
Description

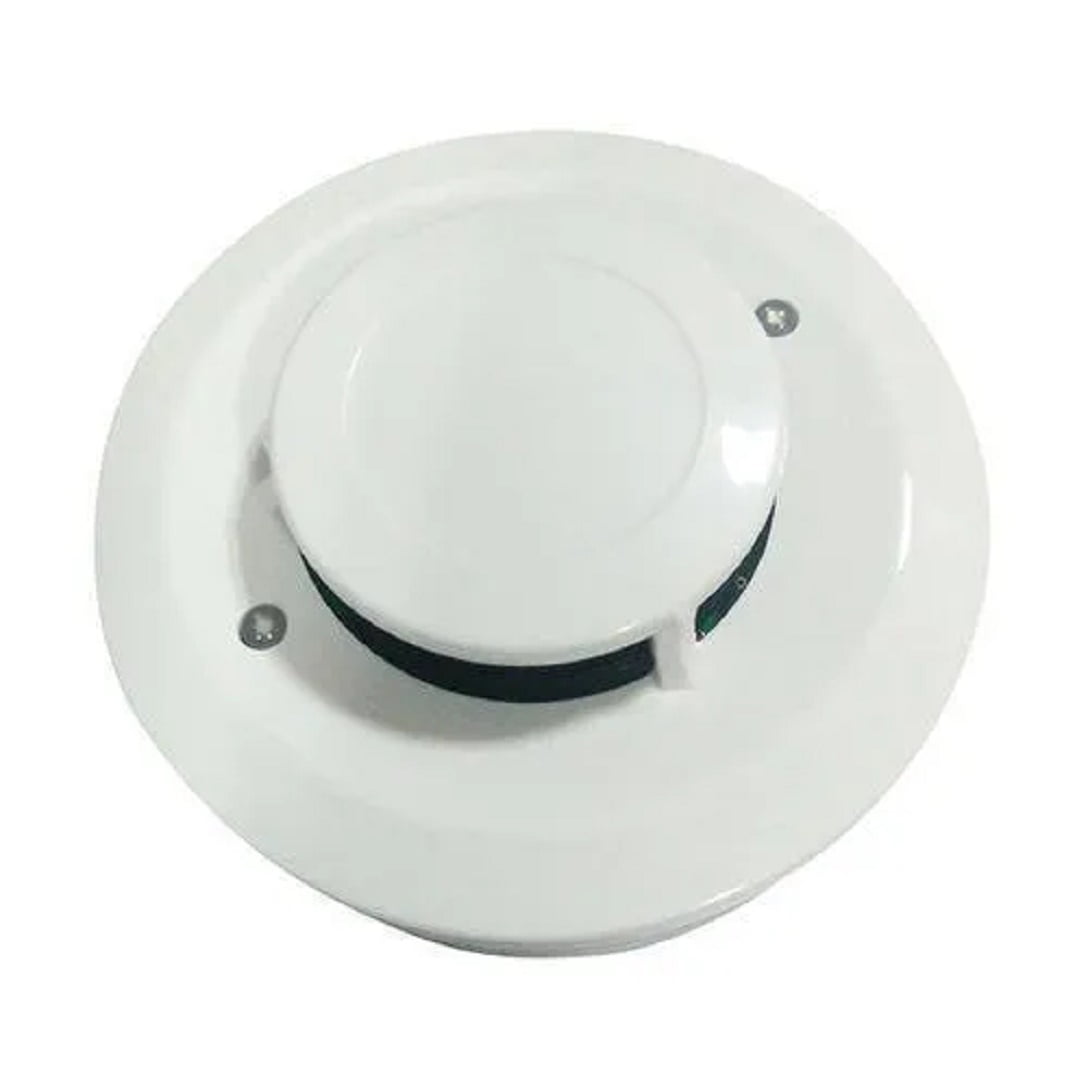

ASES Photoelectric Smoke Detector with base, duel LED, Model No.AS-601-SD detects the smoke by a couple of infrared diodes. The principle of detection is granule in the smoke can reflect infrared light. The infrared diodes are placed in the special chamber, the chamber reflects external light, but does not affect the smoke into it. While there is no smoke, the diode can receive very weak infrared light. When the smoke entering the chamber, diode can receive more and more light, and the detector can give out alarm signal when the smoke attains the certain density. In order to reduce the interference and lower power consumption,
the emitting circuit adopts the pulse signal.
Features
- Power supply polarty free input
- Infrared photoelectric sensor
- Dustproof, mothproof, anti-light interference design
- Stainless steel shield in chamber, anti-RF1 20V/m--1GFIz
- MCU processing, eliminate false alarm
- Network relay output I LED indicating alarm
- SMT manufacture technology, high stability.
Specifications
- Voltage range : 16-32 VDC
- Alarm Current : 10-100mA
- Quiescent : 60uA @ 24 VDC
- Operating Temp. : O Degree C to Plus 90 Degree C
- Humidity : < 95 Percent RH
- Coverage : 50 sq. meters
- Model No. : AS-601-SD
- Brand : ASES
- Wire : 2
- Sensor : Photoelectric
- Product size : 105mm in diameter x 59mm depth
