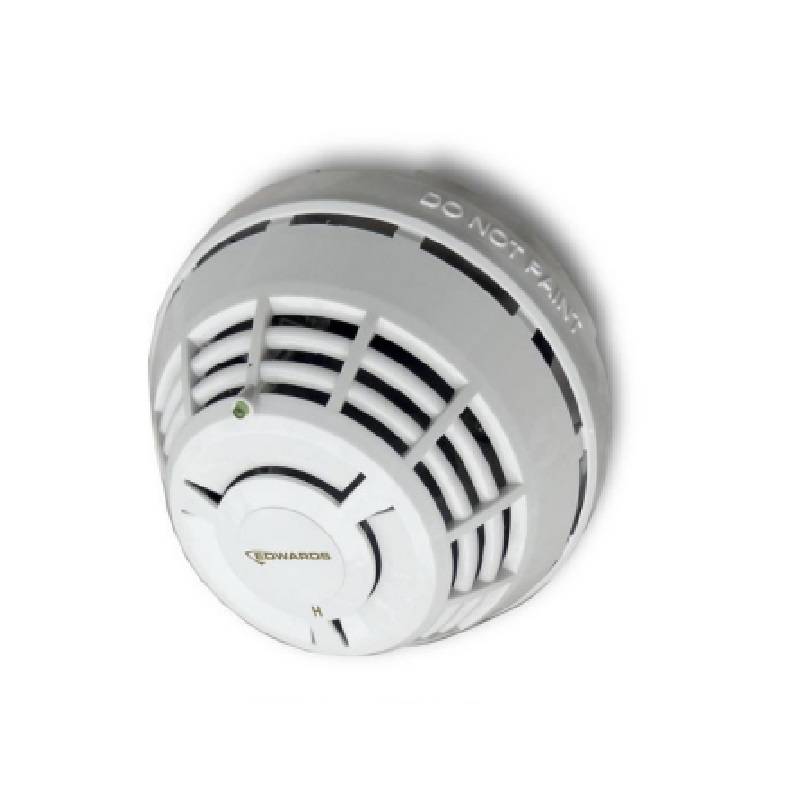

Edward SIGA-HRD-FCN+ SIGA-SB Addressable Heat Detector with Standard Base
₹ 3,422.00 GST included
Edward SIGA-HRD + SIGA-SB Addressable Heat Detector with Base is anÿintelligent fixed temperature/rate-of-rise fire detector. It monitors the temperature of the surrounding air and analyzes the data from the sensor to determine whether to initiate an alarm.
In stock
Product Code : FSIN00000535
Brand: Edward
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Edward SIGA-HRD + SIGA-SB Addressable Heat Detector with Base is anÿintelligent fixed temperature/rate-of-rise fire detector. It monitors the temperature of the surrounding air and analyzes the data from the sensor to determine whether to initiate an alarm. The rate-of-rise heat function quickly detects a fast, flaming fire. The Signature Series smoke detectors bring advanced sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends property protection capabilities. Continuous self-diagnostics ensures reliability over the long-haul, while the latest thermister technology makes these detectors ideal wherever dependable heat detection is required.
Features
- Next Generation Heat Sensing Technology
- 135 øF (57 øC) fixed temperature alarm point (HRD and HFD)
- 15 øF (9 øC) per minute rate-of-rise alarm point (HRD)
- Uses existing wiring
- Automatic device mapping
- Sensor Markings Provide Easy Testing Identification
- Up To 250 Total Signature Devices Per Loop
Specifications
- Brand: Edward
- Condition New
- Usage/Application Fire Detection
- Model Name/Number SIGA HRD
- Voltage 15.20 to 19.95 VDC
- Relative Humidity 0 to 93% noncondensing
- Current Normal operating 51 A 68 A
- Rate-of-rise 15 DegreeF/min (8 DegreeC/min)
- Operating environment Temperature 32 to 100 DegreeF (0 to 38 DegreeC
